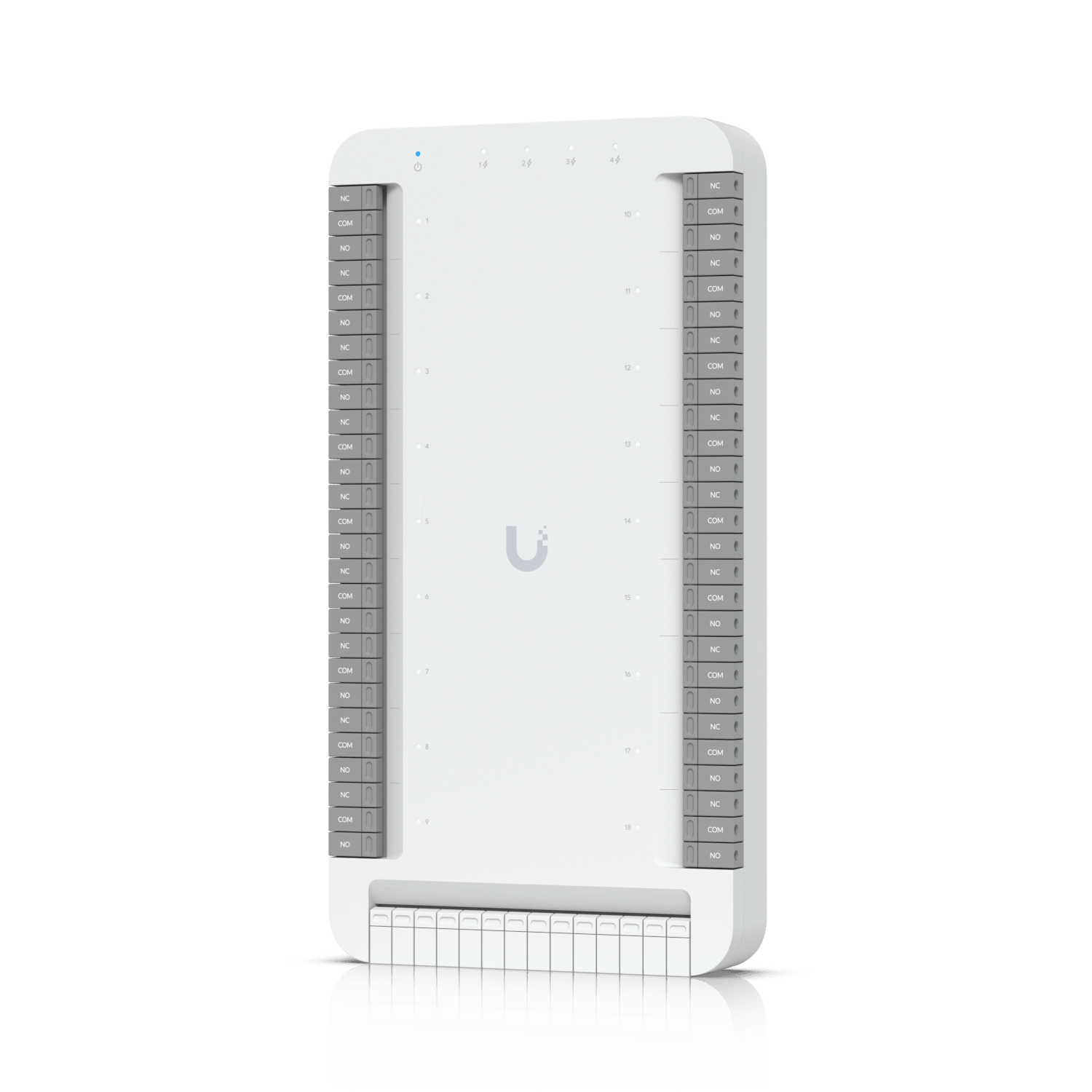

(1) Elevator HubDescription
| UA-Hub-Elevator Mechanical |
|
|---|---|
| Dimensions | 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3″) |
| Weight | 537 g (1.2 lb) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |
| Hardware | |
| Networking interface | (4) 10/100/1000 Base-T |
| Management interface | (1) 10/100/1000 Base-T |
| Power method | PoE++ |
| Max. power consumption | 7W (Without PoE output) |
| PoE input | (1) PoE++, 50V DC, 1.2A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 42W |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| Digital input | (6) Car position; Up/down/stop/full/door open/door close (1) Emergency |
| Outputs | (18) Relays Rating 30V DC/2A |
| LEDs | System: white/blue/red Output relays: white |
| Buttons | (1) Factory-reset Terminal blocks |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
