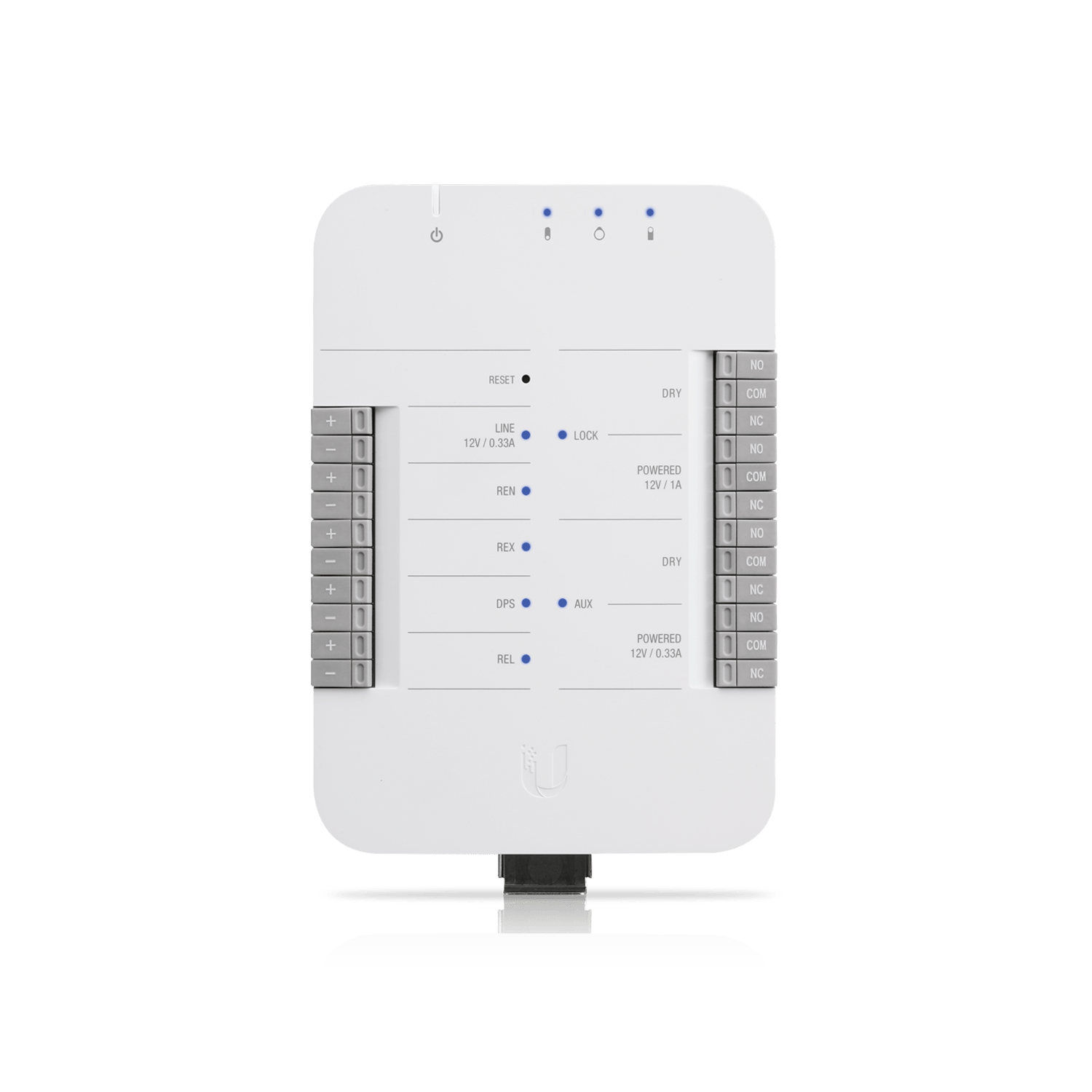

(2) Lock terminals (12V and Dry)
(2) AUX terminals for an external siren and automatic door opener
(4) Additional inputs (sensors and buttons)
Connect and power using PoE++
Connect to two UniFi Access readers and one UniFi Protect cameraDescription
| Mechanical | |
|---|---|
| Dimensions | 190 x 126 x 30.5 mm (7.48 x 4.96 x 1.2″) |
| Weight | 457 g (16.12 oz) |
| Enclosure material | Plastic Enclosure with Metal Mount Plate |

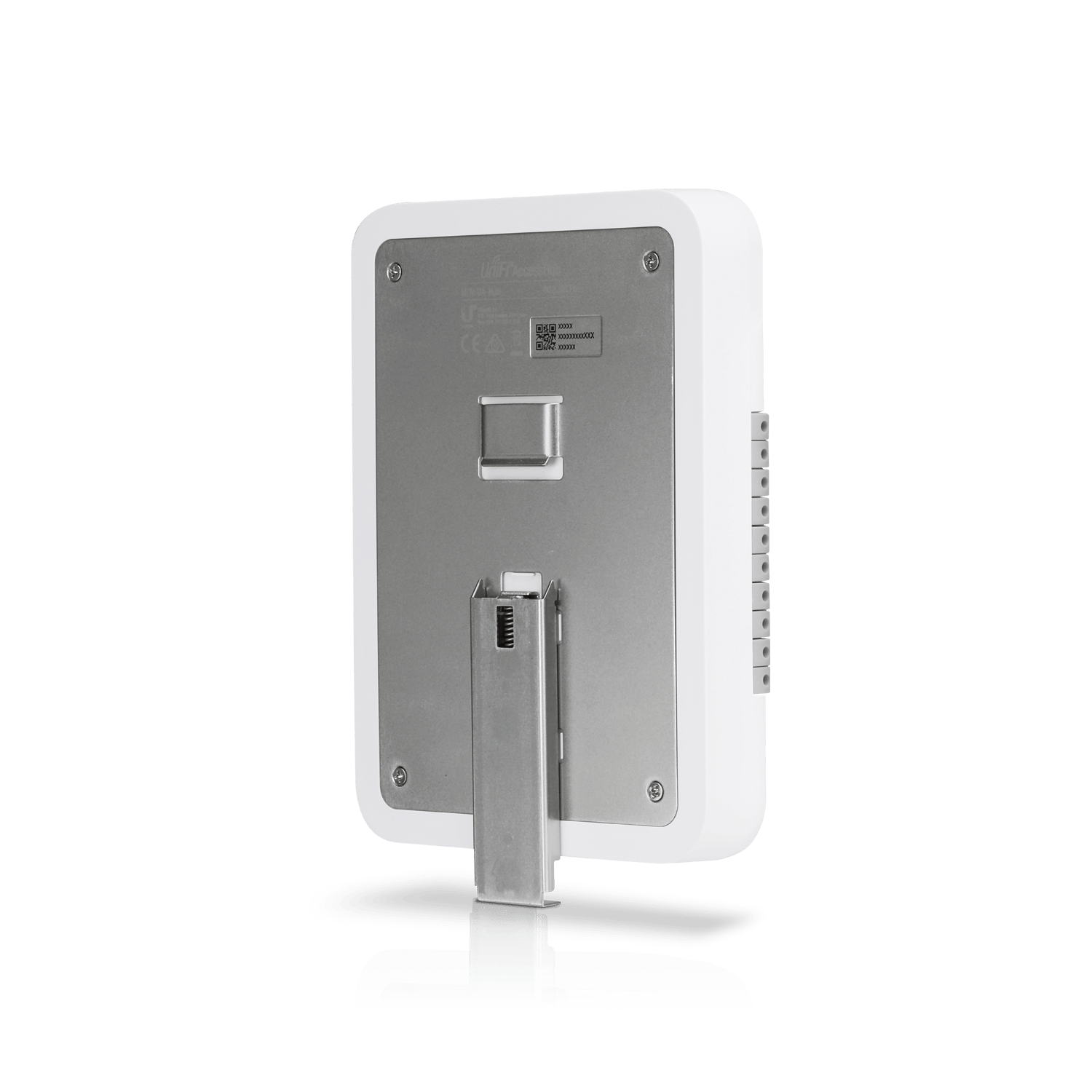

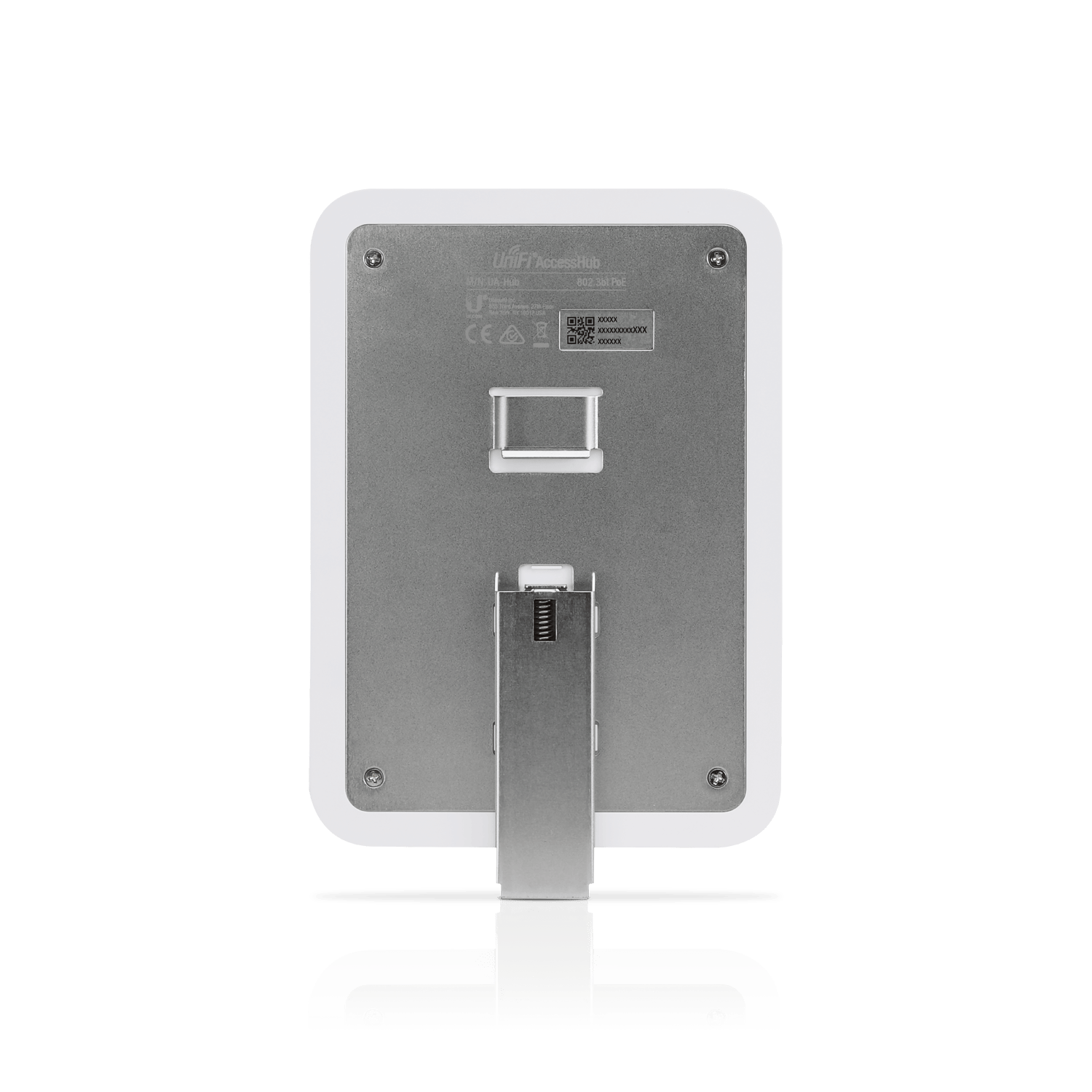

| Mounting options | DIN rail |
| Hardware | |

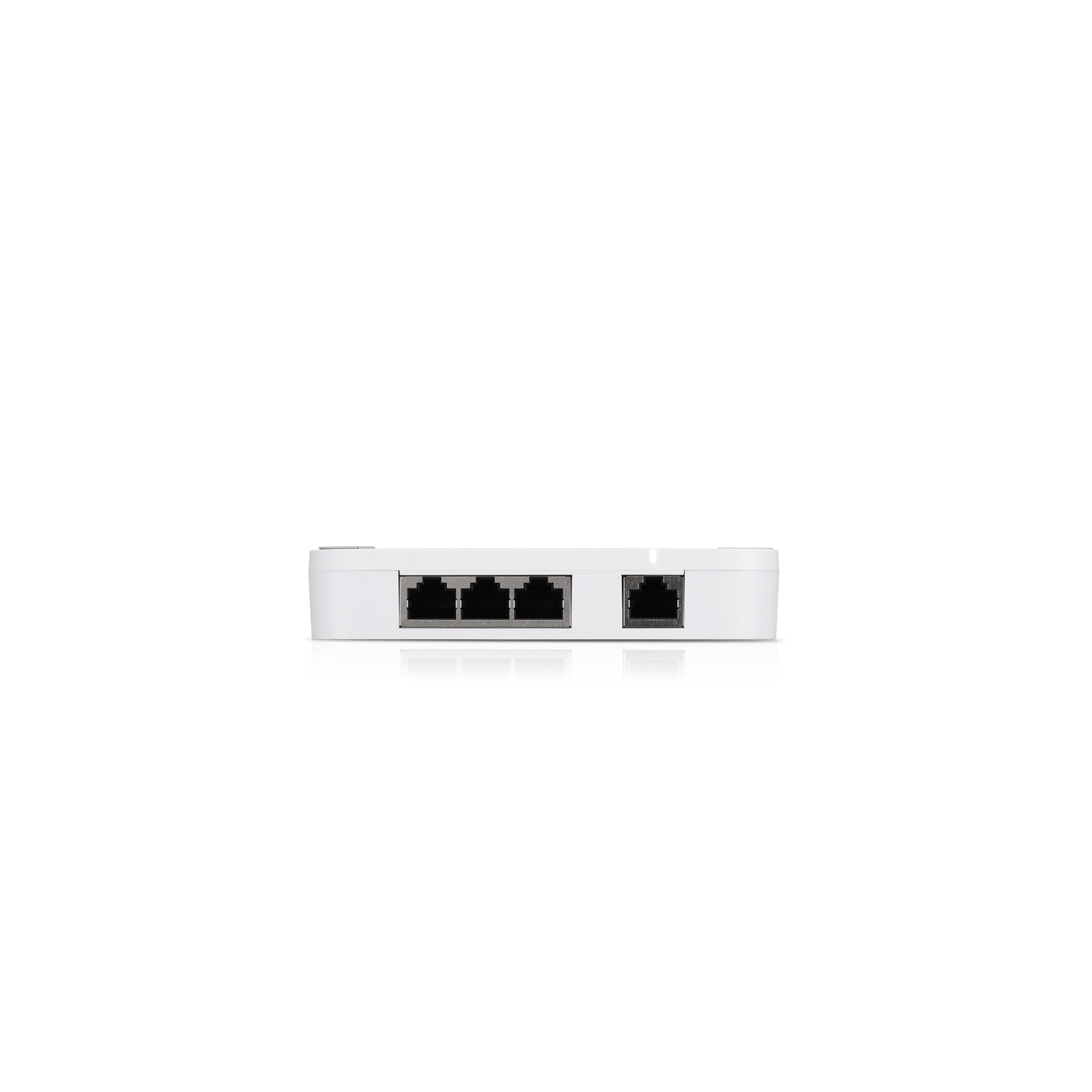

| Networking interface | (4) 1GbE |
| Max. power consumption | 51W |
| Power method | PoE++ |
| Input terminals | REX – request to exit REN – request to enter REL – remote release DPS – door position sensor |
| Dry output relay Lock Aux |
Rated 30VDC, up to 1A Rated 30VDC, up to 1A |
| Powered output relay Lock Aux Line |
12VDC, up to 1A 12VDC, up to 0.33A 12VDC, up to 0.33A |
| LEDs | (1) System, (3) PoE out, (4) Input (2) Output Relays, (1) 12VDC Out |
| Buttons | (1) Factory reset |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 5 – 90% noncondensing |
| Certifications | CE, FCC, IC |
