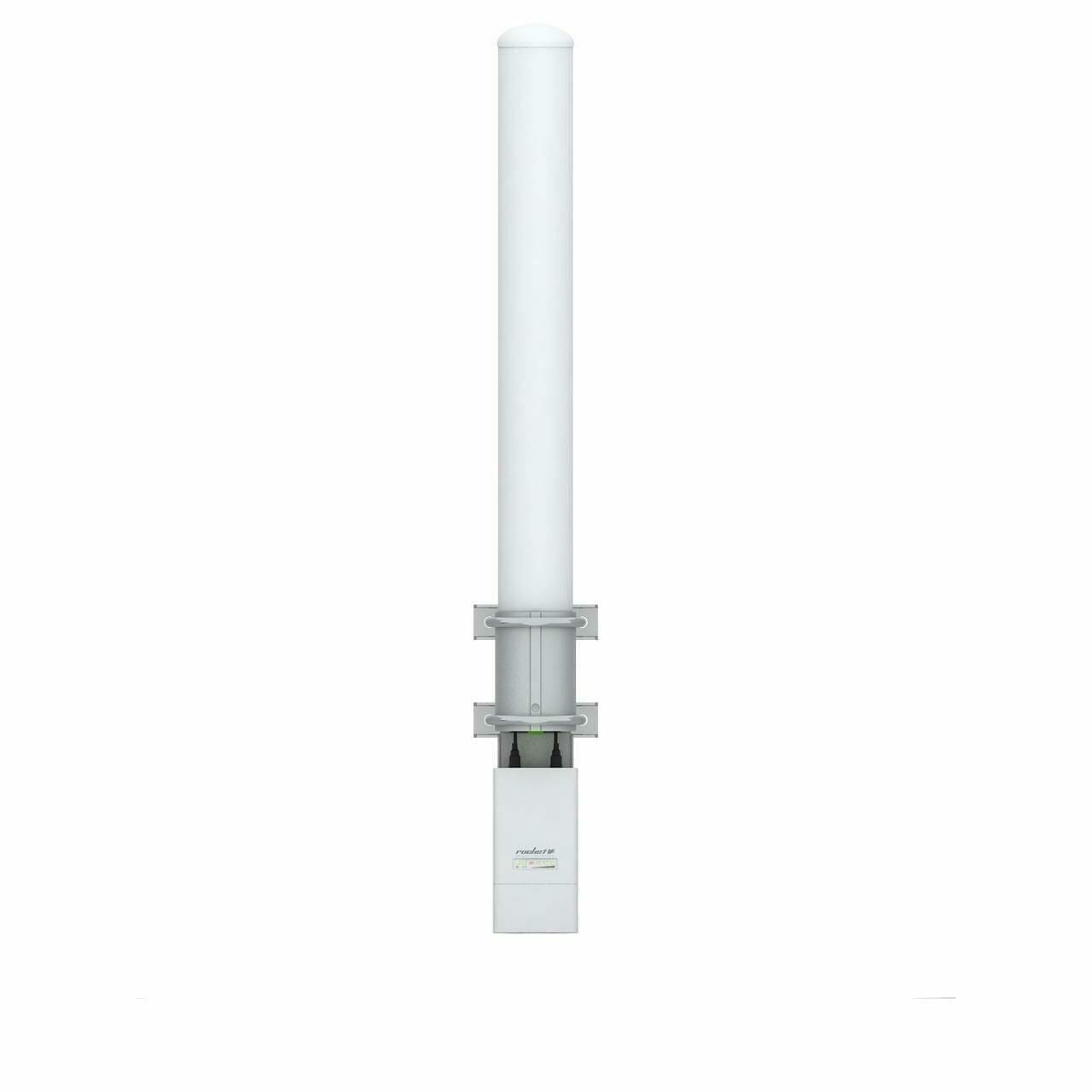

airMAX Omni 5 GHz, 10 dBi Antenna

$125.00

The airMAX® Omni Antenna is a carrier-class 2×2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.

The airMAX Omni Antenna provides powerful 360° coverage, 2×2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

SKU: AMO-5G10 Categories: , ,

Description

AMO-5G10
Dimensions (mm) 582 X 90 X 65
Weight 0.68 kg
Frequency Range 5.45 – 5.85 GHz
Gain 10 dBi
Elevation Beamwidth 12°
Max. VSWR 1.6:1
Downtilt
Wind Survivability 125 mph
Wind Loading 10 lb @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 25 dB min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

Additional information

Weight 7 lbs
