Description
Dimensions
481.4 x 480 x 132 mm (19 x 18.9 x 5.2″)
Managed Cameras
(210) HD (140) 2K (70) 4K
Storage Capacity
(16) 3.5″ drive bays
Data Protection
Yes
Vantage Point
Yes
Networking Interface
(2) 10G SFP+ (1) 10 GbE
Power Redundancy
Yes
Form Factor
Rack Mount (3U)
Door Access Support
Yes
Hardware
Hard Drive Capacity
(16) 2.5/3.5″ HDD / SSD support
Max. Power Budget for Drives
310W
Max. Power Consumption
410W
Power Method
(2) AC input, 100-240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply
Hot-swappable 550W CRPS
Processor
MV-CN10208-A0-CF240AA-C250-SCP
Memory
32 GB
Management
Ethernet
Display
Bezel (Optional)
Weight
Without rails: 16.6 kg (36.6 lb) With rails: 19.5 kg (43.0 lb)
Enclosure Material
SGCC steel
Mount Material
Aluminum

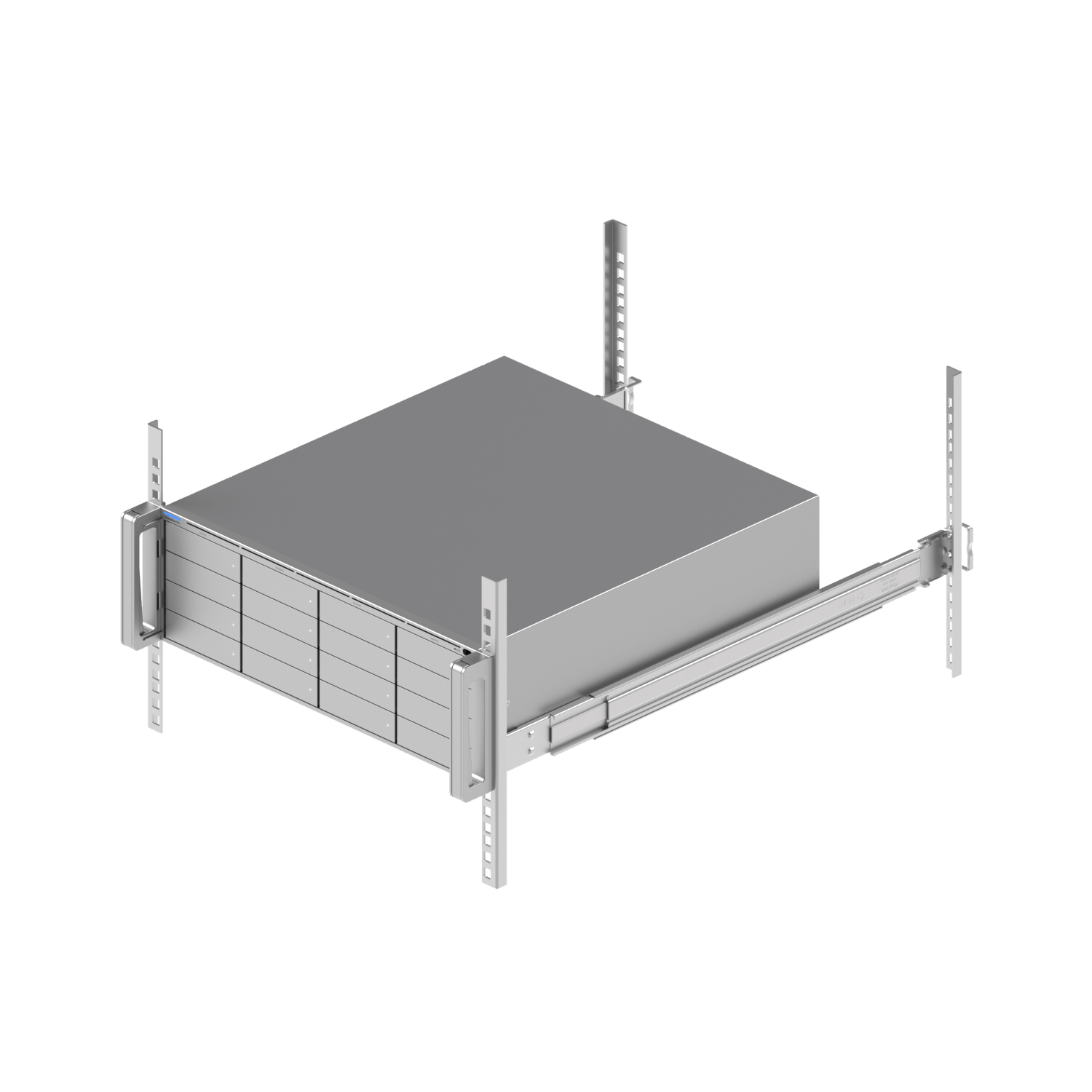

Slide Rails
482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
