Description
Features
- PoE Switch
- TP-SW8GBT/AT/PSV-U
- Industrial Strength (-40C to +75C Operating Temperature)
- 10/100/1000 Gigabit Compatible Ethernet and 2.5G Fiber
- 12VDC to 57VDC Redundant Power Supply Input
- Ultimate Flexibility for Broadband and Security Integrators
- Port 1-4 802.3bt 90W or Passive 54V 30W PoE
- Port 5-8 802.3at 30W or Passive 24V 15W PoE
- Port 9-10 1.0/2.5Gb SFP Single/Multimode Fiber ports
- L2 Manageable via Console Port or IP
- Surge Protected Inputs, Fan-less Metal Shell
- DIN Rail Mount, Wall Mount or Desktop mode
- Configurable Alarms and RS485 Interface
- Simple TyconOS™ User Interface with Advanced Mode
Applications
- Outdoor Network Installations
- PoE Lighting Applications
- Off-Grid Systems
- Factory Floor Networks
- Cameras and Wireless Radios
Description

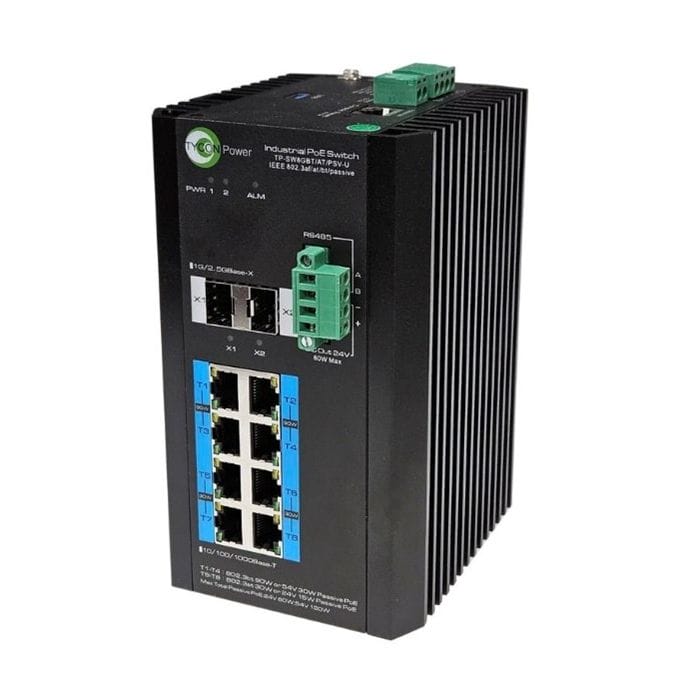

The TP-SW8GBT/AT/PSV-U Power over Ethernet (PoE) 10-Port Gigabit Switch from Tycon® delivers high-speed Layer 2 Ethernet performance and advanced manageability. This switch lets users configure PoE ports to meet diverse networking needs with the following options:
- 4 x 802.3BT 90W or 54V 30W Passive PoE Ports
- 4 x 802.3AT or 24V 15W Passive PoE Ports
- 2 x 1.0/2.5Gb SFP Fiber Ports
These configurations allow you to power multiple devices from a single switch. The two SFP ports accept standard single-mode or multimode fiber transceivers, as well as RJ45 transceivers, adding two more Ethernet ports for enhanced connectivity.
Efficient Power Delivery

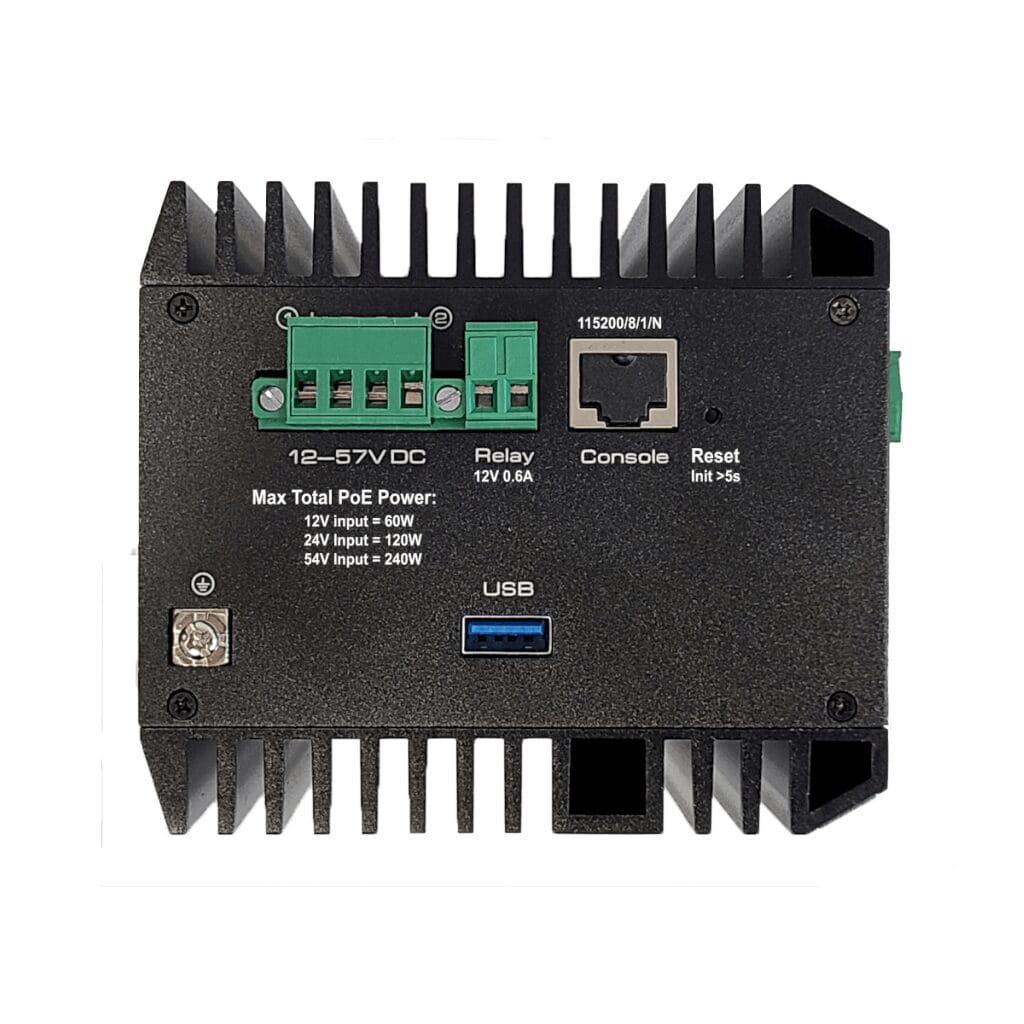

The TP-SW8GBT/AT/PSV-U supports a wide DC input range (12VDC to 57VDC), enabling flexible power options. At 57V input, it delivers a total of 240W PoE output, with 120W available at 24V input and 60W at 12V input.
Intuitive Management and Security
Manage PoE ports effortlessly through the user interface or the console port. The switch provides secure access with SSH protocols, while users can control the command interface via web browsers, CLI, TELNET, SSH, or SNMP.
The PoE Watchdog feature detects and restarts unresponsive devices automatically, while Q-PoE (Quick PoE) powers devices immediately upon startup, bypassing delays caused by boot sequences.
Enhanced Layer 2 Functionality
Equipped with advanced Layer 2 features, this switch improves performance, security, and network manageability. Features include VLAN, Port Mirroring, Port Isolation, IGMP Snooping, LLDP, Storm Control, and PoE management. Additional support for Spanning Tree, Jumbo Frames, and Ring Topology enhances network flexibility and resilience.
Designed for industrial and outdoor use, the TP-SW8GBT/AT/PSV-U operates reliably across wide temperature ranges. It supports Category 5 or higher Ethernet cables with distances up to 100m and offers optical ranges up to 120km on fiber ports. Shielded and grounded RJ45 connectors and surge protection on all ports ensure durability in challenging conditions.
Dual Power Inputs for Uninterrupted Operation
This switch features two separate power inputs, supporting primary and backup power configurations. Its wire terminal connector accepts up to 12AWG wire for secure connections.
The TP-SW8GBT/AT/PSV-U combines power, reliability, and flexibility in one compact solution, making it an ideal choice for industrial and outdoor networking applications.
