Description
Features
- PoE Switch
- Power Inputs: 802.3bt PoE to Port 5, Wire Terminal
- Gigabit Compatible
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation

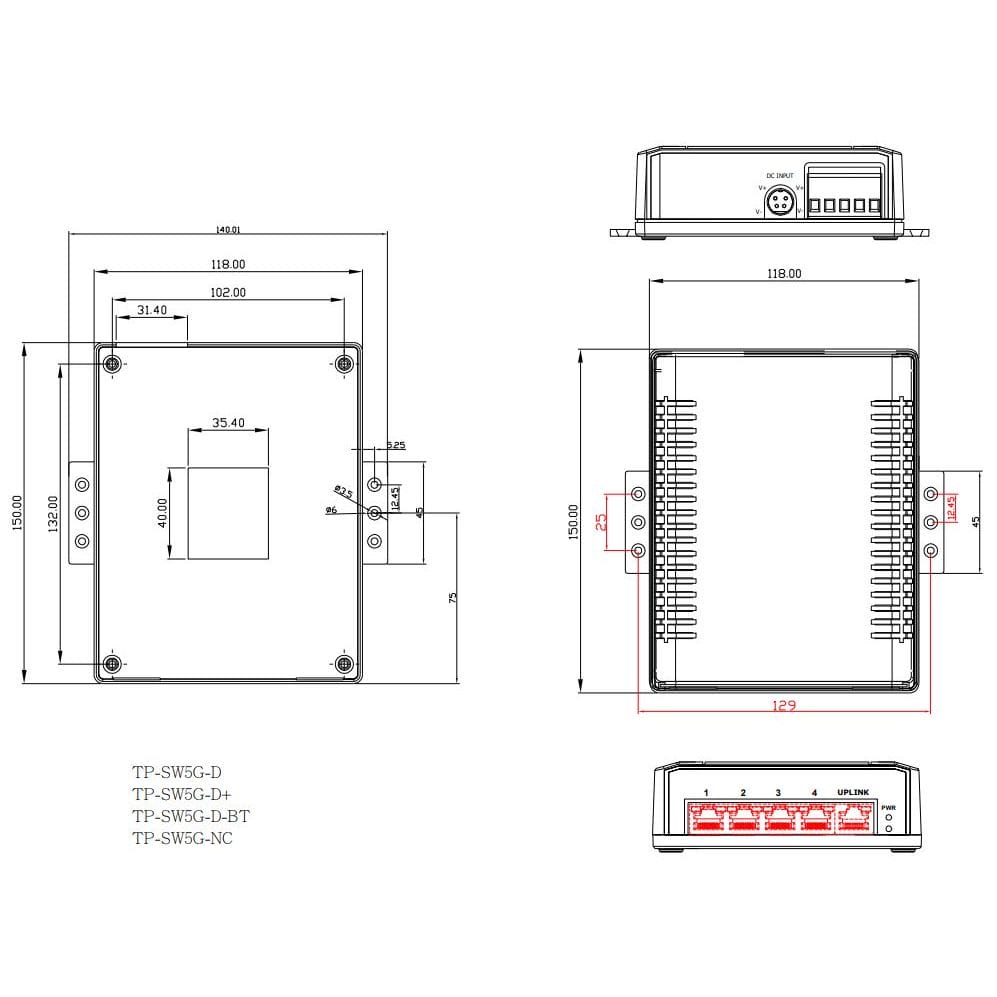

- DIN Rail Adapters included
Applications
- Power 4 802.3af/at devices from an 802.3bt (70W) PoE Input
- Power 4 802.3bt (up to 90W) from a wire terminal input

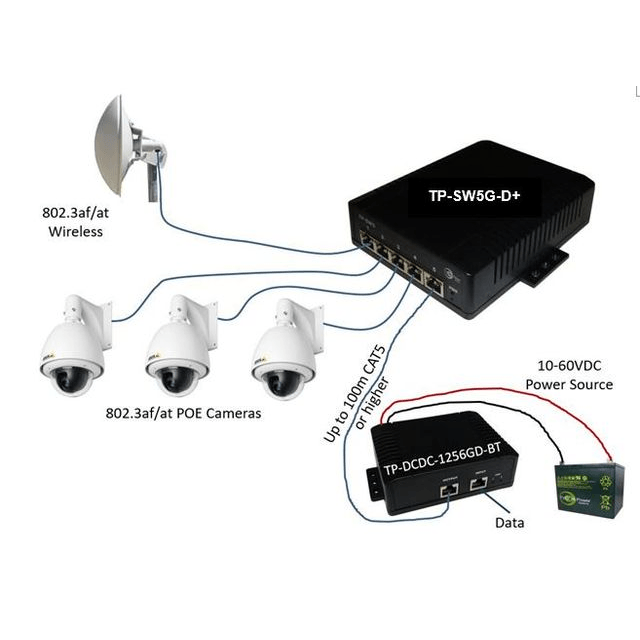

- Remote or Local Power for Cameras and Wireless Radios
- Also Functions as Ethernet/PoE repeater
- PoE Lighting Applications
Description
The TP-SW5G-D-BT Power over Ethernet (PoE) 5-Port Gigabit Switch from Tycon Systems® delivers exceptional high-speed and high-power Layer 2 Ethernet performance. This versatile switch includes one 802.3bt PoE input and four 802.3bt PoE outputs, providing ample power and data connectivity for various devices. Ports 1-4 support 802.3af/at/bt standards, delivering up to 90W PoE per port by utilizing 2 or 4 pairs for power. Meanwhile, Uplink Port 5 accepts up to 70W PoE on 4 pairs, enabling the switch to power itself and connected devices remotely over CAT5 or higher Ethernet cables.
Moreover, the Ethernet specification ensures network distances up to 100m (328ft) between the PoE switch and the remote device. Additionally, using the switch as a repeater extends the total Ethernet distance to an impressive 200m. This makes it ideal for extensive networking setups where reliable connectivity over long distances is crucial.

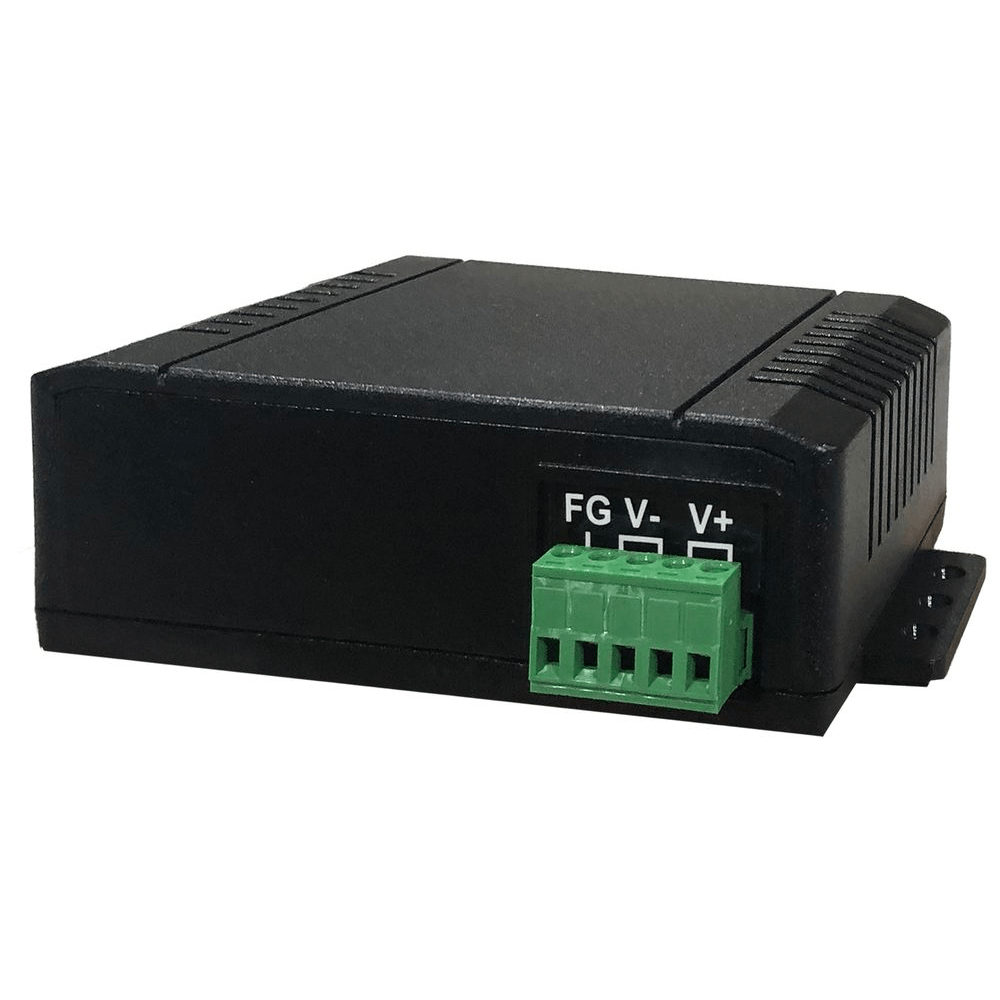

The switch draws power from two different interfaces: a Wire Terminal Connector, which can handle 10A (approximately 500W max), or the 802.3bt PoE input to Uplink Port 5, which supports up to 70W max. It supports redundant power inputs, prioritizing the higher voltage to ensure reliable operation even in demanding conditions.
Furthermore, the RJ45 connectors feature shield and ground connections to the common “FG” (Frame Ground) connection, enhancing durability and reliability. All Ethernet wires include 15kV surge protection, safeguarding against electrical surges. Additionally, the switch’s conformal coating guards against moisture, ensuring reliable performance in various environmental conditions. Its wide operating temperature range ensures consistent operation in both outdoor and industrial environments.
In summary, the TP-SW5G-D-BT PoE 5-Port Gigabit Switch from Tycon Systems® offers a comprehensive solution for high-speed, high-power Ethernet performance. Explore the full range of Tycon Systems® PoE solutions to find the perfect fit for your specific requirements and experience the superior performance and reliability that this switch brings to your network infrastructure.
