Description
Features
- PoE Switch
- 3 Gigabit Ports, Easy Plug and Play Operation
- Extends the range of PoE and Ethernet an additional 100 meters or more
- Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4 Pair (60W)
- No Additional Power Supply is Required
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- CE and FCC Certification
- Compact Desktop or Wall Mount Design and Compatible with DIN Rail Adapters
- I.T.E. Power Supply, UL Listed
Applications
- Add another PoE and Data Port without running more Ethernet Cable
- Extend Ethernet and PoE an additional 100 meters per each TP-SW3G
Description

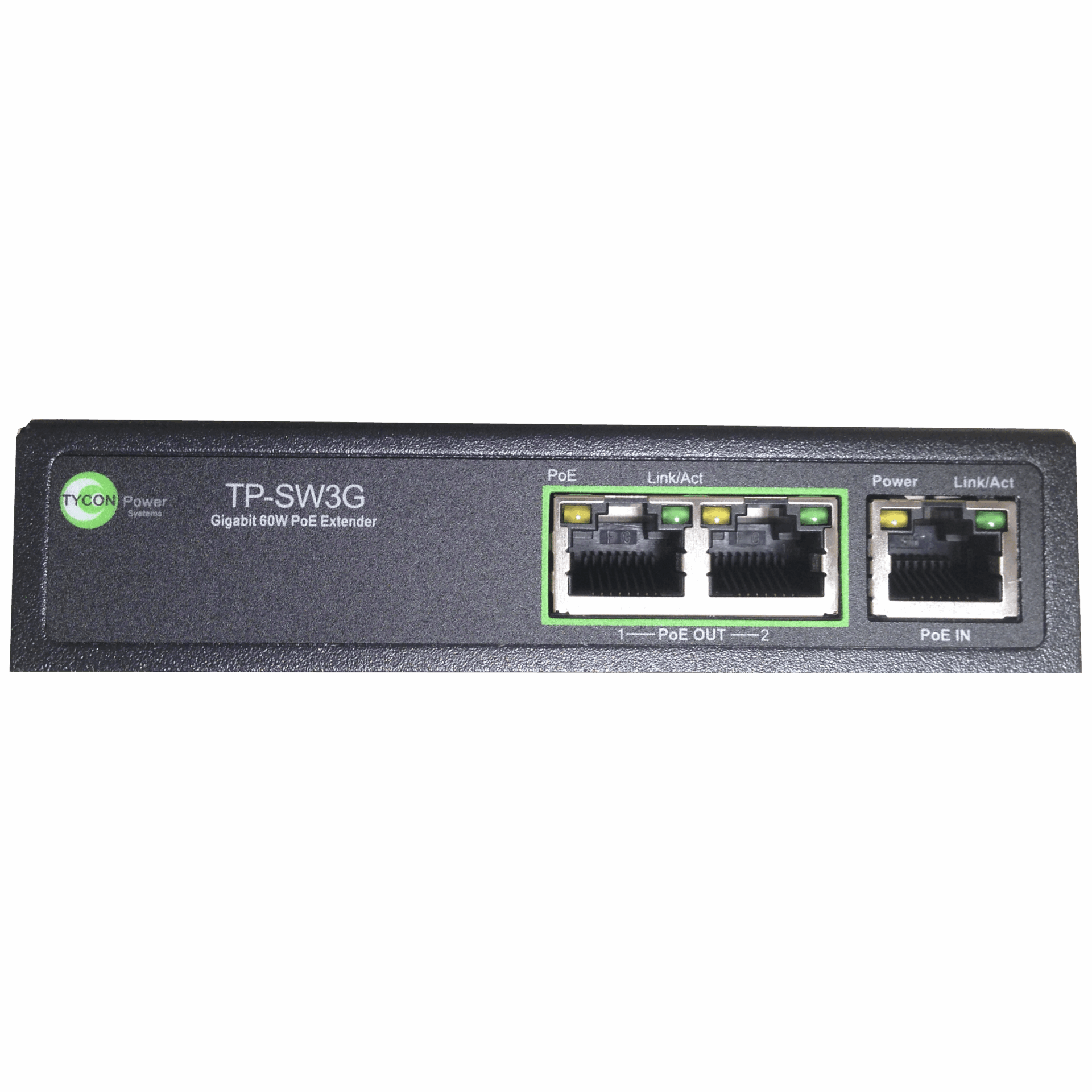

The TP-SW3G Power over Ethernet (PoE Switch) 3-Port Gigabit switches from Tycon drive high-performance networking, delivering up to 30W of PoE power per port while enabling seamless, high-speed Ethernet switching.
It immediately accepts both Gigabit data and power through the RJ45 “PoE In” port, making integration effortless. Supporting IEEE802.3af, IEEE802.3at, and IEEE802.3at 4-pair (60W) standards, plus 42-57VDC Passive PoE, it adapts to a wide range of setups and power needs.
The two 802.3af/at Gigabit “PoE Out” ports efficiently supply up to 30W per port, covering distances of up to 100m (330ft). By linking multiple TP-SW3G units, you can extend your network up to 300m, all without needing additional power sources, as the units are powered directly through PoE.
Built for reliability and compatibility, the TP-SW3G works with Category 5 or higher Ethernet cables. Its shielded and grounded RJ45 connectors ensure optimized performance with minimal interference. For tough environments, it offers 15kV surge protection and a conformal coating for moisture resistance. With a wide operating temperature range, the TP-SW3G excels in outdoor and industrial settings, ensuring dependable, long-term performance.
