Description
Features
- PoE Injector
- Input Voltage 90-264VAC 47-63hz
- Dual 802.3af/at outputs
- High Power Output to 70W
- Surge Protected to 15kV
- Dual DC Inputs for Connecting 2 Power Sources
- 10/100/1000 Data Compatibility, Shielded Connectors
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range, DIN Rail Mountable
Applications
- 110/220VAC Backup Power Systems
- Power a Camera and Wireless using a single PoE Injector
- Power a Wireless AP and Backhaul using a single PoE injector
- PoE Lighting Applications
Description

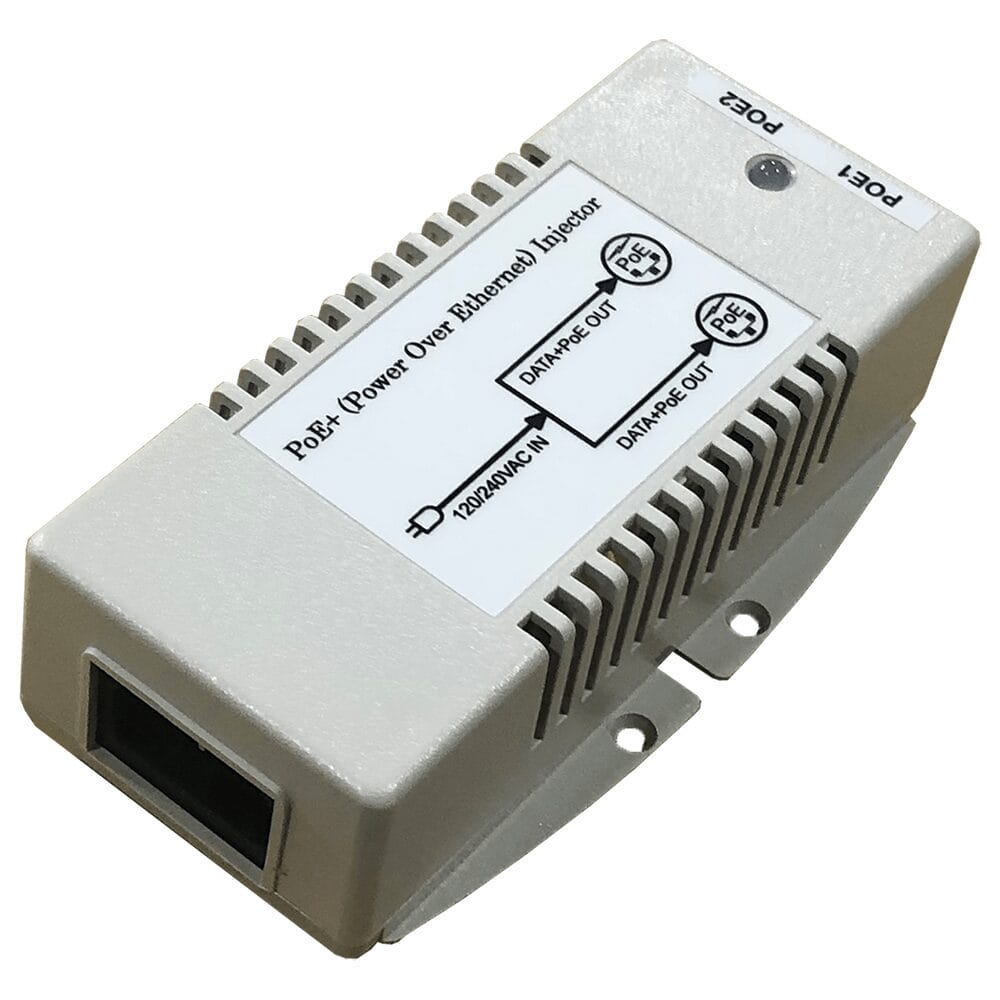

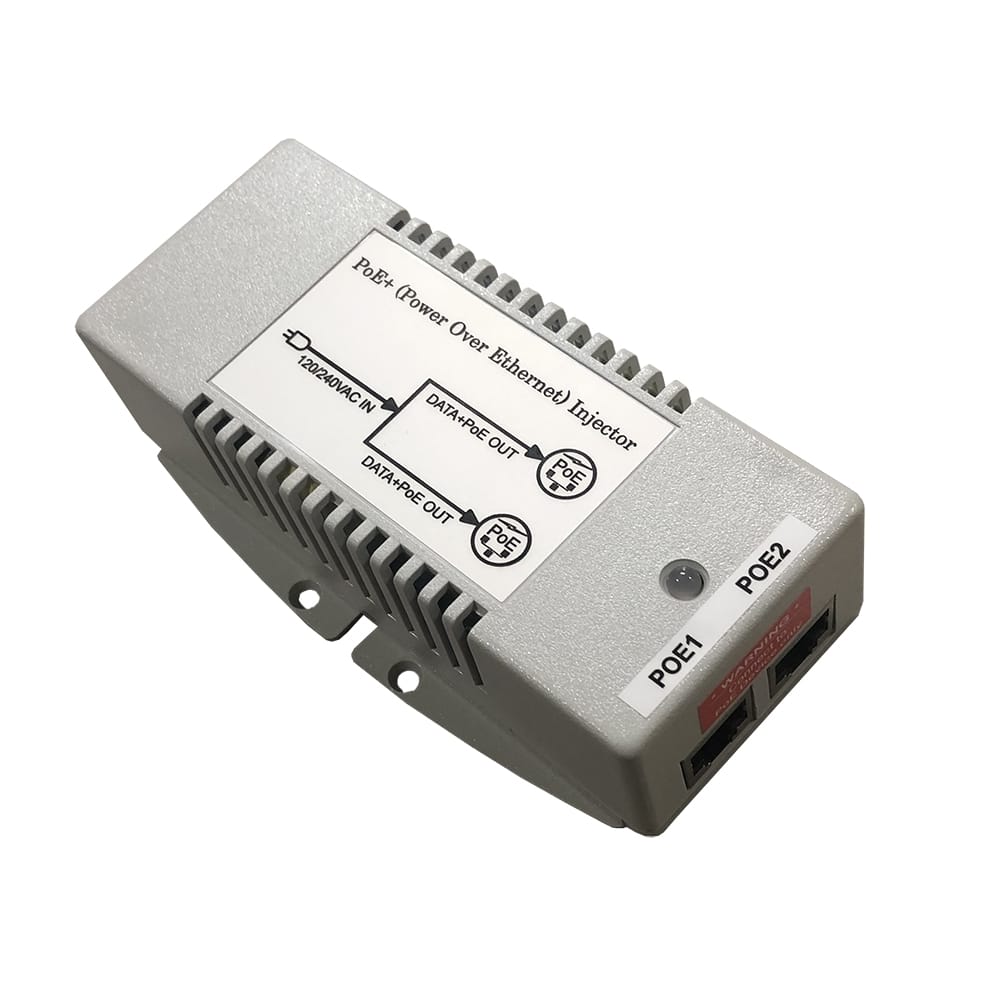

The TP-DC-HP-48GDX2 delivers powerful performance as a high-power PoE injector with dual 802.3af/at-compatible outputs. It powers two devices simultaneously from a single PoE injector, eliminating the need for a separate PoE switch by handling the data path between devices directly. This model operates on 110/220VAC grid power, providing a combined output of up to 50W.
Moreover, designed for reliability, the injector includes two DC inputs, enabling connections to both primary and backup power sources for added redundancy. This dual-input feature ensures continuous operation even if one power source fails, providing peace of mind in critical applications. Additionally, the TP-DC-HP-48GDX2 actively protects against short circuits, overloads, and surges caused by ESD or lightning. This comprehensive protection enhances the durability and longevity of connected devices, making it an ideal choice for demanding environments.
Furthermore, the built-in surge protection shields sensitive connected devices from damage, ensuring all eight wires are fully protected. This feature is crucial for maintaining the integrity and performance of network devices, especially in areas prone to electrical disturbances. Additionally, the injector isolates input and output voltages, preventing grounding or negative voltage issues for smooth and safe operation. This isolation ensures that the devices function correctly without interference or damage from power discrepancies.
