Description
Features – DC to DC Converter
- DC to DC Converter
- Input Voltage 12VDC (Range 10-15VDC)
- IEEE 802.3af/at Compliant Output 56VDC
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 35W
- Low Self Consumption Power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact Size – Maximize Available Space
- I.T.E. Power Supply, UL Listed
Applications
- 12V Battery Systems, Vehicle Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- PoE Lighting Applications
Description

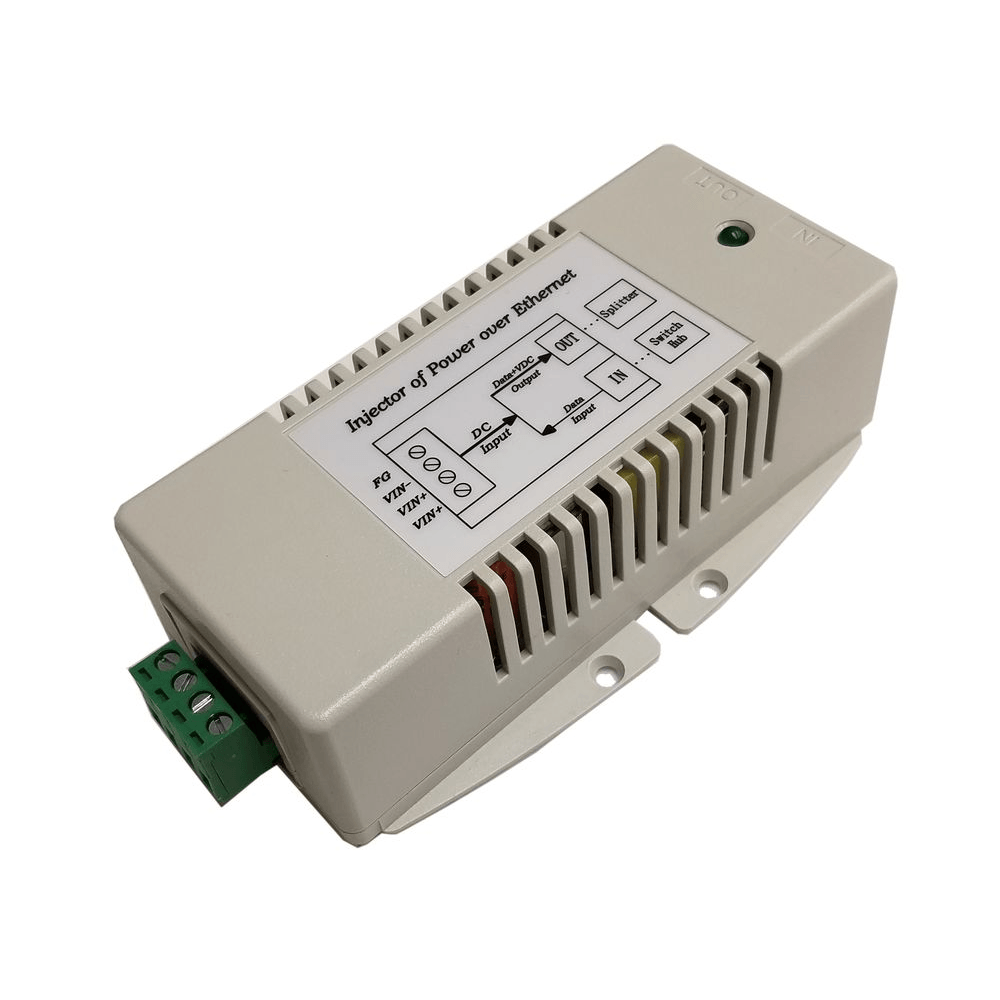

The TP-DCDC-1248 by Tycon Power® is a cost-effective and reliable DC to DC Converter solution for converting 12V or 24V battery power to 48VDC Power over Ethernet (PoE). With its integrated PoE injector, it delivers a stable 48VDC output from an input range of 9VDC to 36VDC. Designed with one common (-) and two (+) inputs, it connects seamlessly to both primary and backup power sources, ensuring uninterrupted operation. For industrial applications, a durable metal enclosure model is also available.
This unit supports data-in through a shielded RJ45 jack and provides data-out with 48V PoE power via the output jack. It powers devices using Ethernet pins 4,5(V+) and 7,8(V-), making it compatible with many PoE devices. For applications requiring the IEEE 802.3af handshake, compliant models are available for added flexibility.
To protect your equipment, the TP-DCDC-1248 includes surge, short circuit, and overload protection. With a 24W power output, it is suitable for a wide range of applications. Additionally, it supports DIN rail mounting with adaptors (pn: DIN-ClipKit-UNI), allowing for quick and flexible installation in industrial settings.
Whether you’re powering remote systems, industrial equipment, or high-power Ethernet devices, the TP-DCDC-1248 offers a dependable and efficient solution. Its robust design and versatile features ensure your devices operate smoothly and reliably in any setup.
