Netpoint 6ft Parabolic Antenna DP 5.9-7.2 GHz 40 dBi includes pigtail N-F to SMA

Technical Description

• ELECTRIC SPECIFICATIONS
  • Antenna type: Directional parabolic reflector
  • Frequency: 5.9 – 7.2 GHz
  • Connector type: Female N
  • Gain (dBi):
    • 35, 37, 39.5
    • 5.9GHz, 6.8GHz and 7.2GHz
  • VSWR HPOL: <2.0
  • Beamwidth VPOL: 2.4°
  • Beamwidth HPOL: 2.0°
  • Impedance (Ohms): 50
  • Radius F/B (dB): > 70
  • Polarization: Dual slant 45° or 90°

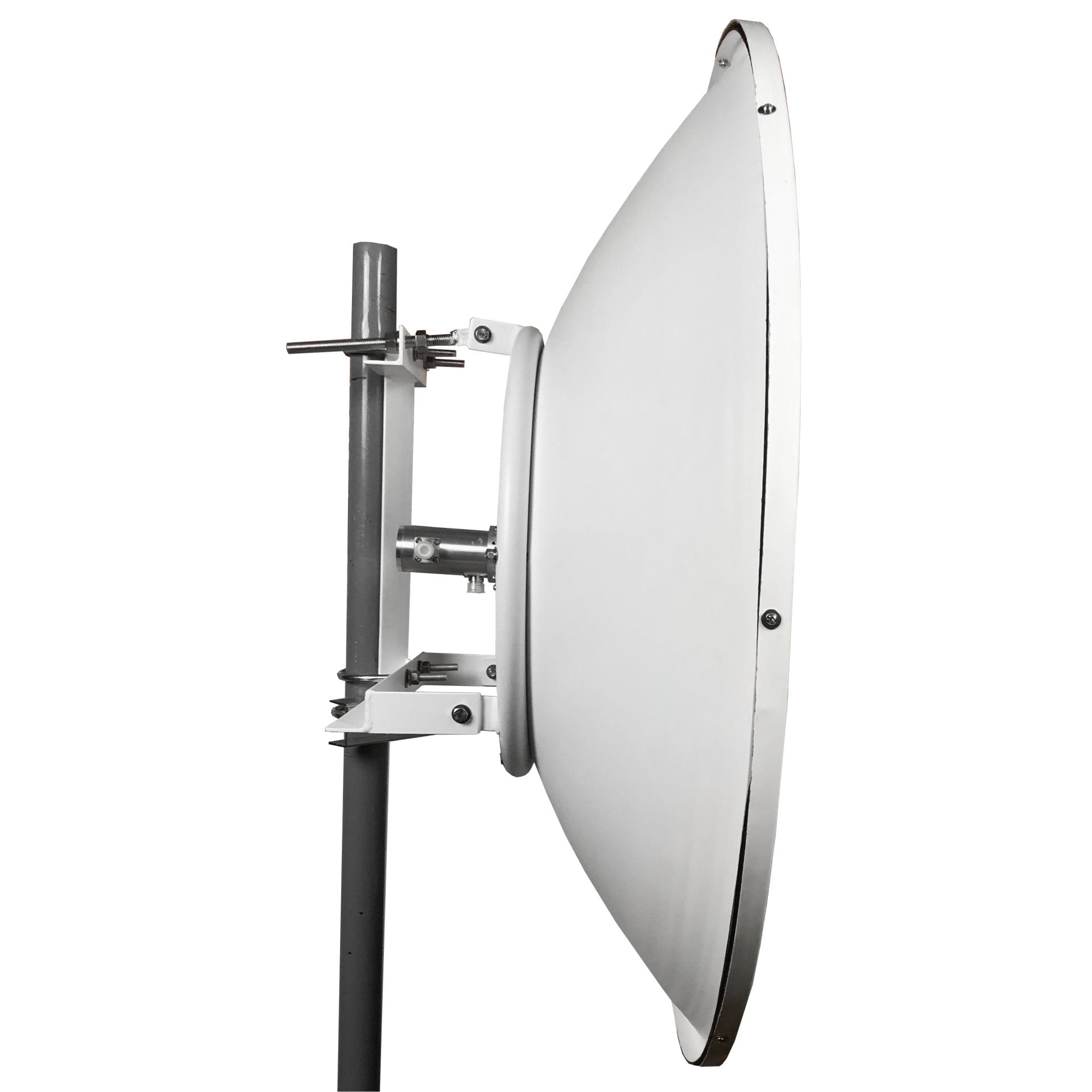

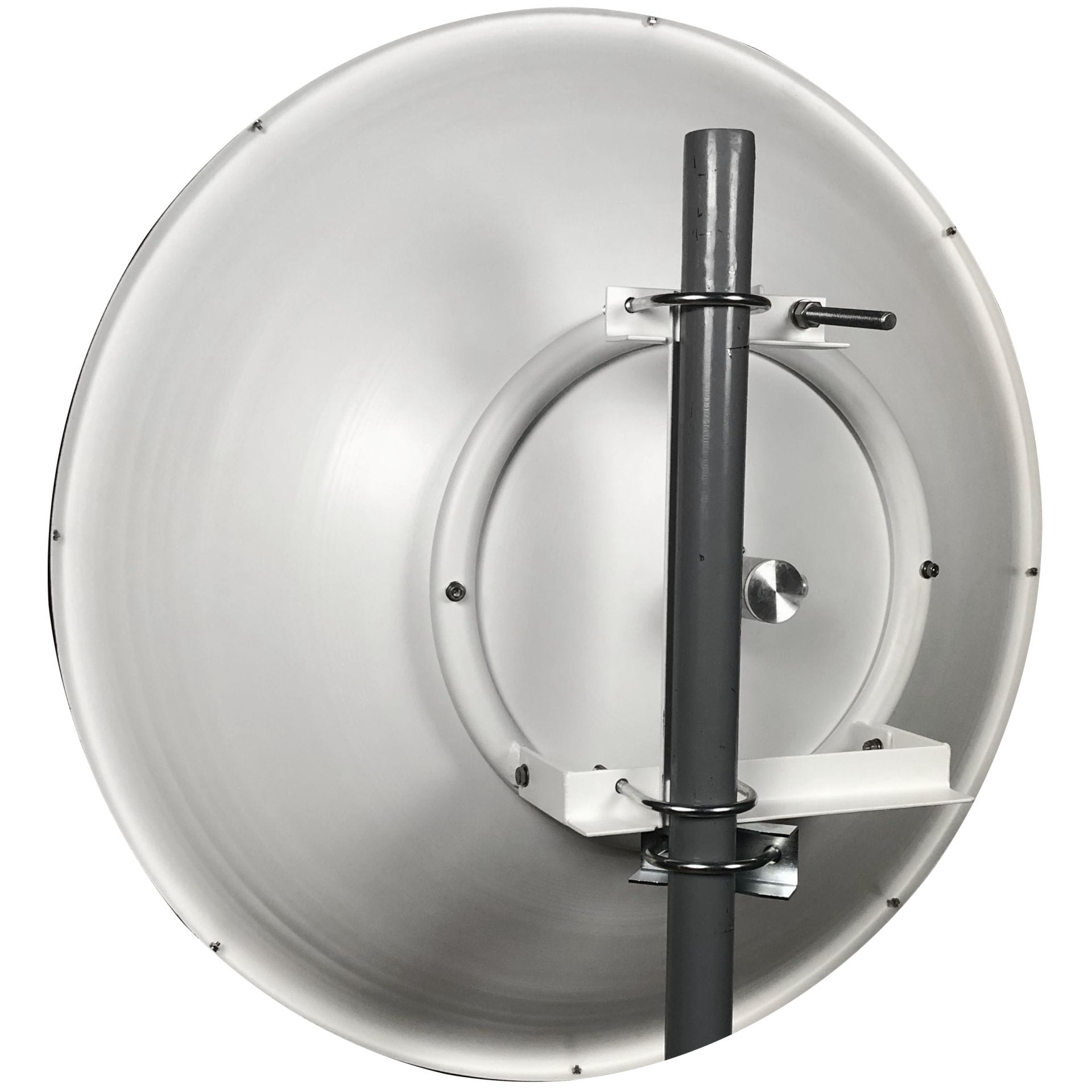

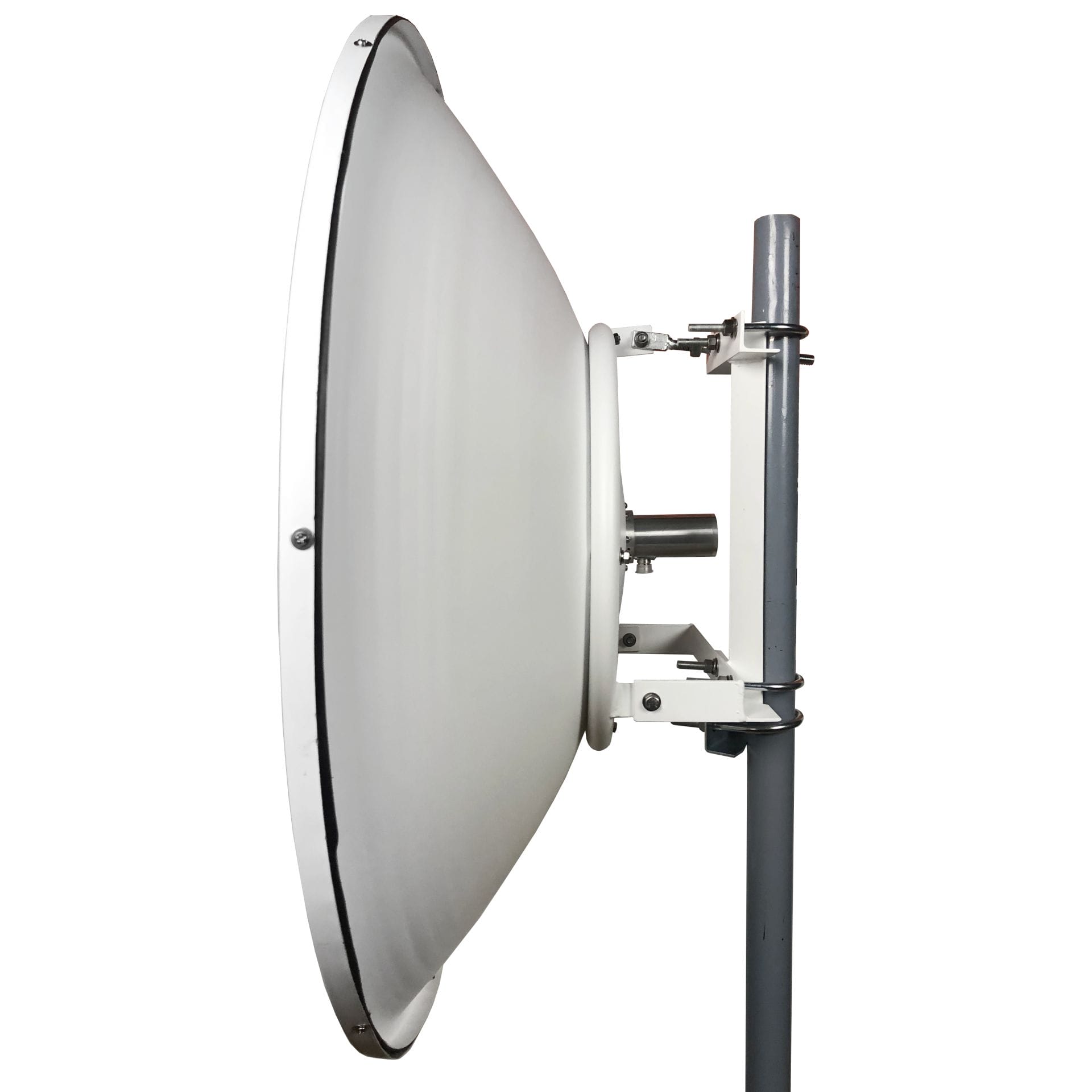

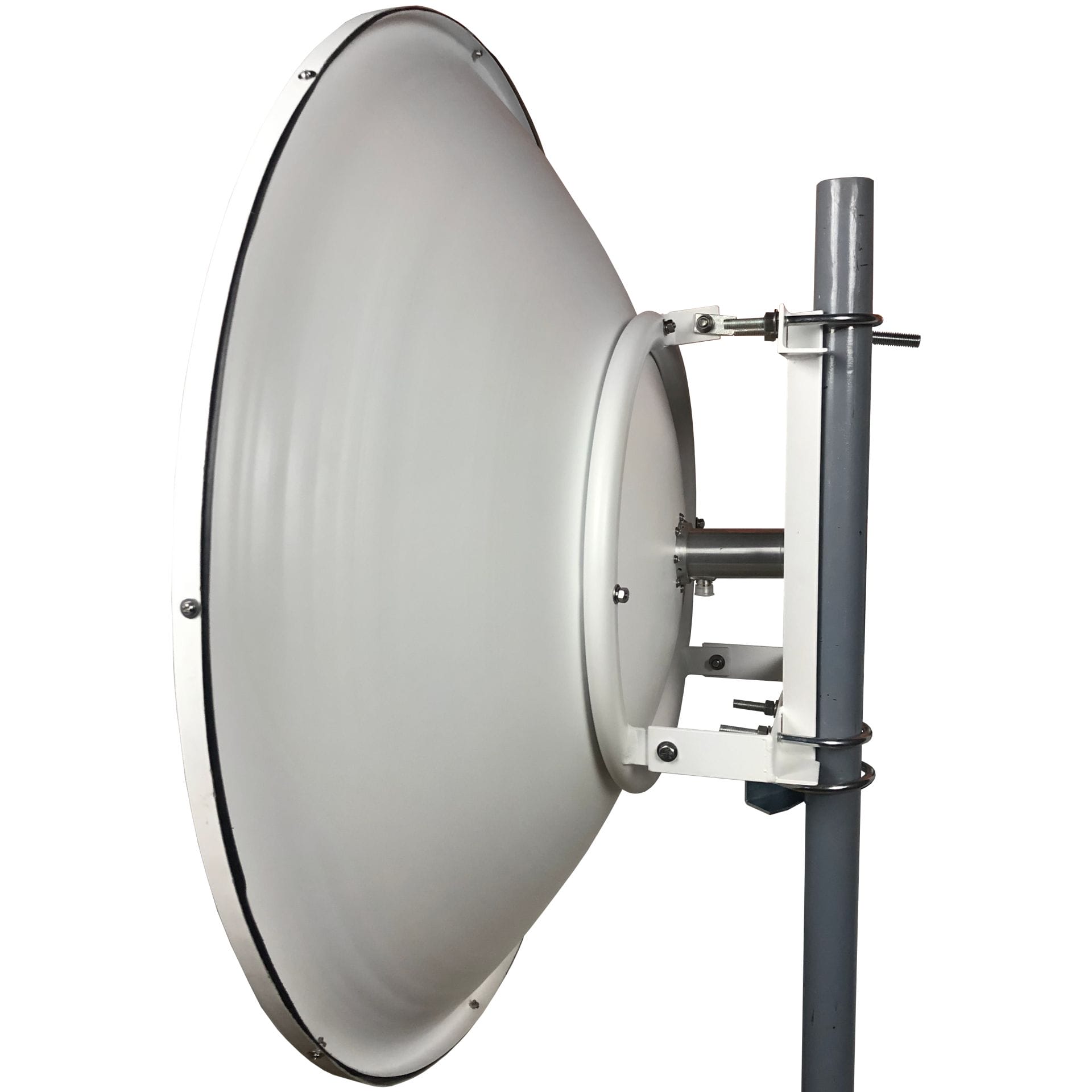

• MECHANICAL SPECIFICATIONS
  • Wind max survival speed (MPH): 124.2 miles with Radome.
  • Azimuth adjustment: +/- 60 degrees
  • Elevation adjustment (°): +/- 15 degrees
  • Mounting Pipe Diameter, Min: 1 inch – 25.4mm
  • Mounting Pipe Diameter, Max: 2.95 inches 75.00mm
  • Operating temperature (C°): – 49 to +140 F° | -45 to +60 C°
  • Connector type: Dual N-Female with pigtails for RP-SMA
  • Length of pigtail: 2ft – 600 mm

NP6-DP-6FT (NP66) – Parabolic Antenna High Performance

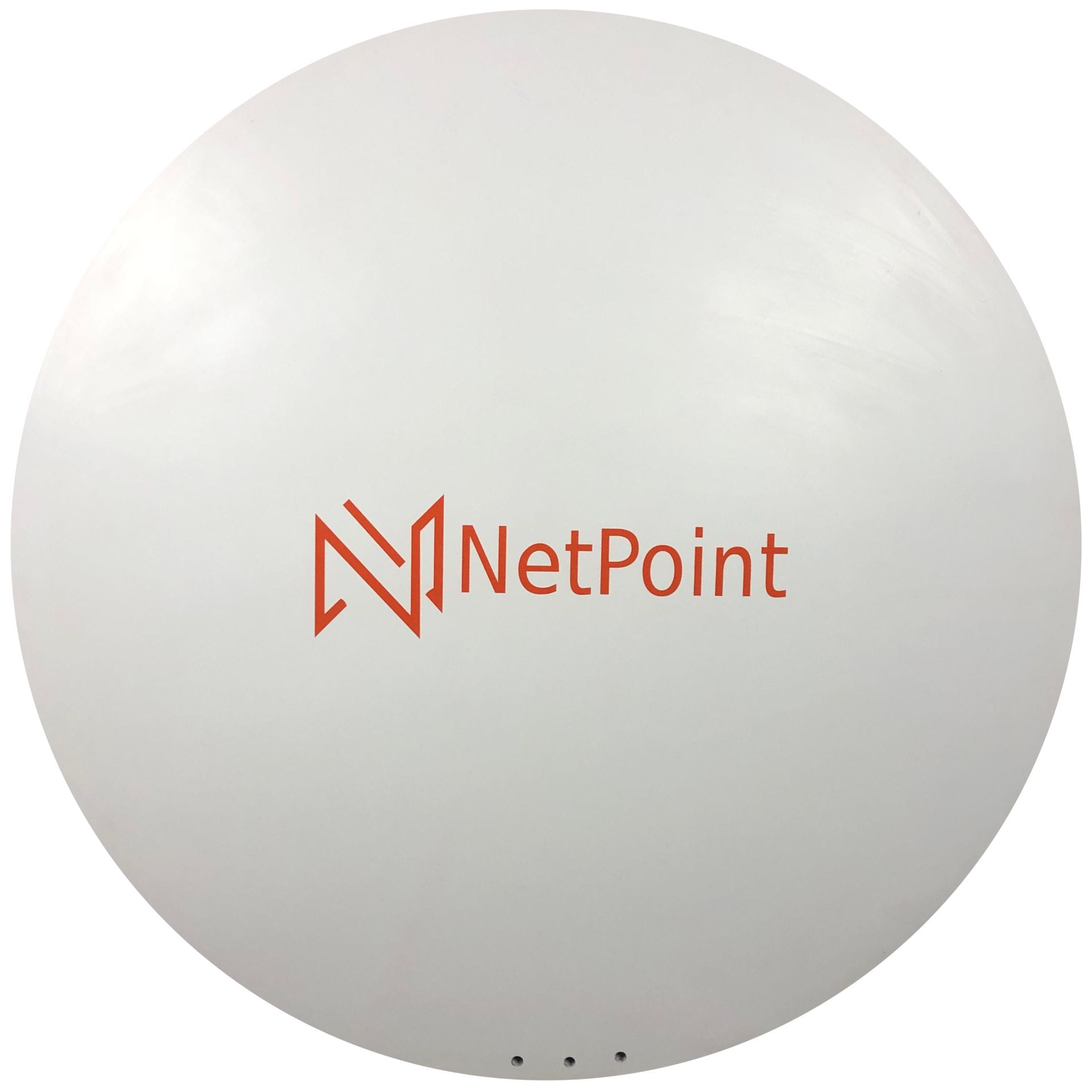

NetPoint’s Np66 (NP6-DP-6FT) super high performance dish antenna is designed to work with very high performance in both licensed and unlicensed bands with excellent gain. The Np66 (NP66-DP-6FT) has dual polarization and an N-female connector, as well as exceptional VSRW performance in the 5.9 to 7.2 Ghz operating band. The antenna comes pre-assembled and ready to install, as well as an integrated radome for high performance and fiable operation in the most demanding conditions. This 4- foot parabolic antenna can be used for PTP backhaul, CPE and public safety applications.

Features

• High Gain: Offers up to 39.5 dBi gain with low VSWR and high port isolation across the entire 5.9 – 7.2 GHz band.
• Wide Frequency Coverage: Covers both 6 GHz and 7 GHz bands.
• Interference Reduction: Achieves a minimum front-to-back ratio of >70 dB, minimizing interference.
• Easy Installation: Pre-assembled and factory-tested to ensure quality and simplify on-site installation.
• Durable Connector: Equipped with a female N-type connector.

Applications:

• PTP Backhaul: Ideal for point-to-point backhaul applications.
• CPE: Suitable for customer premises equipment installations.
• Public Safety: Reliable for public safety communication networks.
