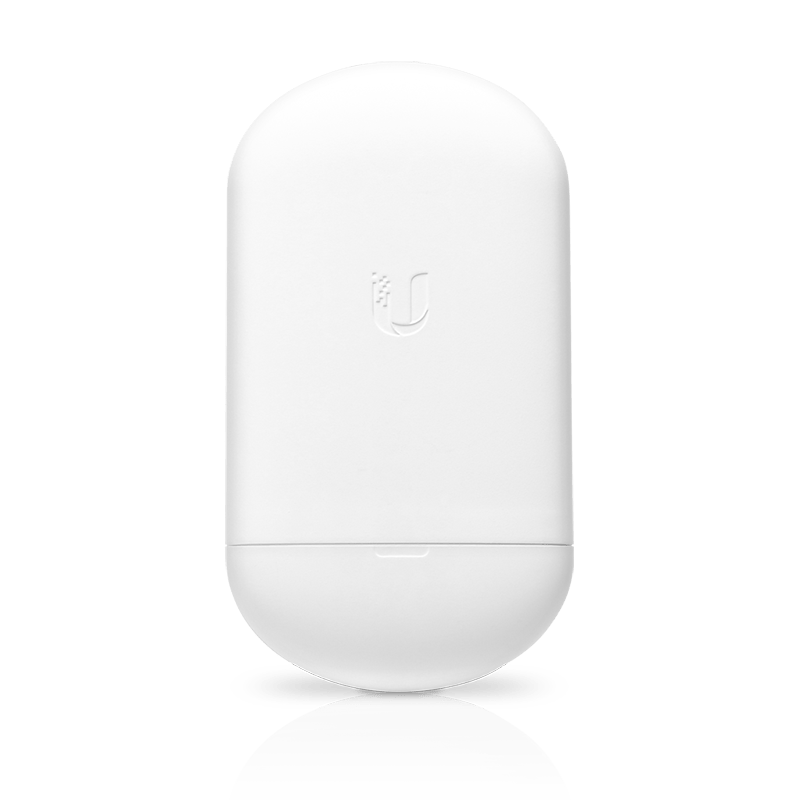

Ubiquiti airMAX NanoStation 5AC Loco

Original price was: $49.00.Current price is: $48.00.

  • Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
  • 5 GHz, 10+ km link range
  • 450+ Mbps throughput
  • Dedicated spectral analysis radio

✅Available on backorder

SKU: LOCO5AC-US Category:

Description

Mechanical
Dimensions 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3″)
Weight 180 g (6.4 oz)
Enclosure material UV-stabilized plastic
Mounting Pole mounting kit (Included)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.3A gigabit PoE supply (Not included)
Supported voltage range 22–27V DC
Max. power consumption 7W
LEDs Power, Ethernet, (4) signal strength
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 13 dBi
Channel bandwidths 10/20/30/40/50/60/80 MHz
Cross-pol isolation 20 dB min.
Max. VSWR 1.8:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 – 2472 MHz
US/CA 2412 – 2462 MHz
