Description
| Mechanical | |
|---|---|
| Dimensions | 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7″) |
| Weight | Without mount: 800 g (1.8 lb) With mount 980 g (2.2 lb) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| Max. power output | 25 dBm |
| Gain | 23 dBi |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 MHz |
| US/CA | 2412 – 2462 MHz |
Key Features
- High-Gain Antenna –The 23 dBi directional antenna ensures focused signal transmission, reducing interference and boosting connectivity.
- Long-Range Capability – Perfect for distances exceeding 15 km, making it ideal for rural and remote deployments.
- Lightweight & Compact – Designed for easy installation and minimal wind resistance.
- Advanced AirMAX AC Technology – Ensures improved performance and higher throughput in busy environments.
- Simple Management – Features dedicated WiFi for easy configuration via a mobile app.

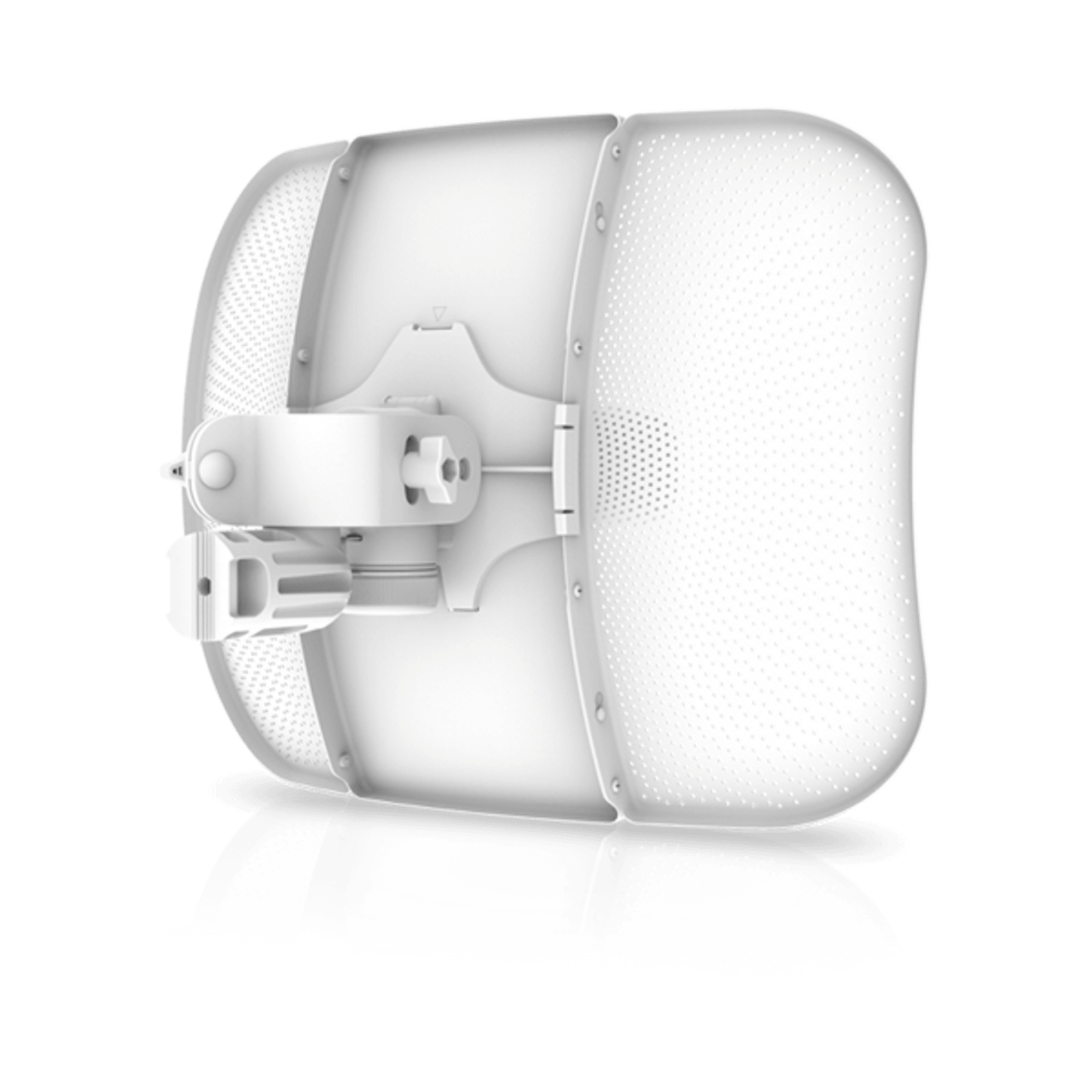

Benefits of airMAX LiteBeam 5AC
- Cost-Effective Solution – Achieves exceptional performance without breaking the bank.
- Optimized Signal Quality – Focused beamwidth enhances signal clarity and reduces noise.
- Durable Build – Built to withstand harsh weather conditions for year-round reliability.
- Easy Setup – Quick assembly and straightforward configuration save time and effort.
FAQs
1. What is the LiteBeam 5AC used for?
The LiteBeam 5AC is a cost-effective solution for delivering high-speed wireless connectivity over long distances.
2. How far can the LiteBeam 5AC transmit data?
It supports a link range of over 15 km, depending on environmental factors.
3. Can the LiteBeam 5AC handle harsh weather conditions?
Yes, it is built with durable materials designed to withstand extreme temperatures and humidity.
4. Does it require professional installation?
No, the LiteBeam 5AC is easy to assemble and set up with the included quick start guide.
5. Is it suitable for businesses?
Yes, it’s ideal for small businesses, remote offices, and industrial applications needing high-performance internet access.
