Description
Technical Specifications

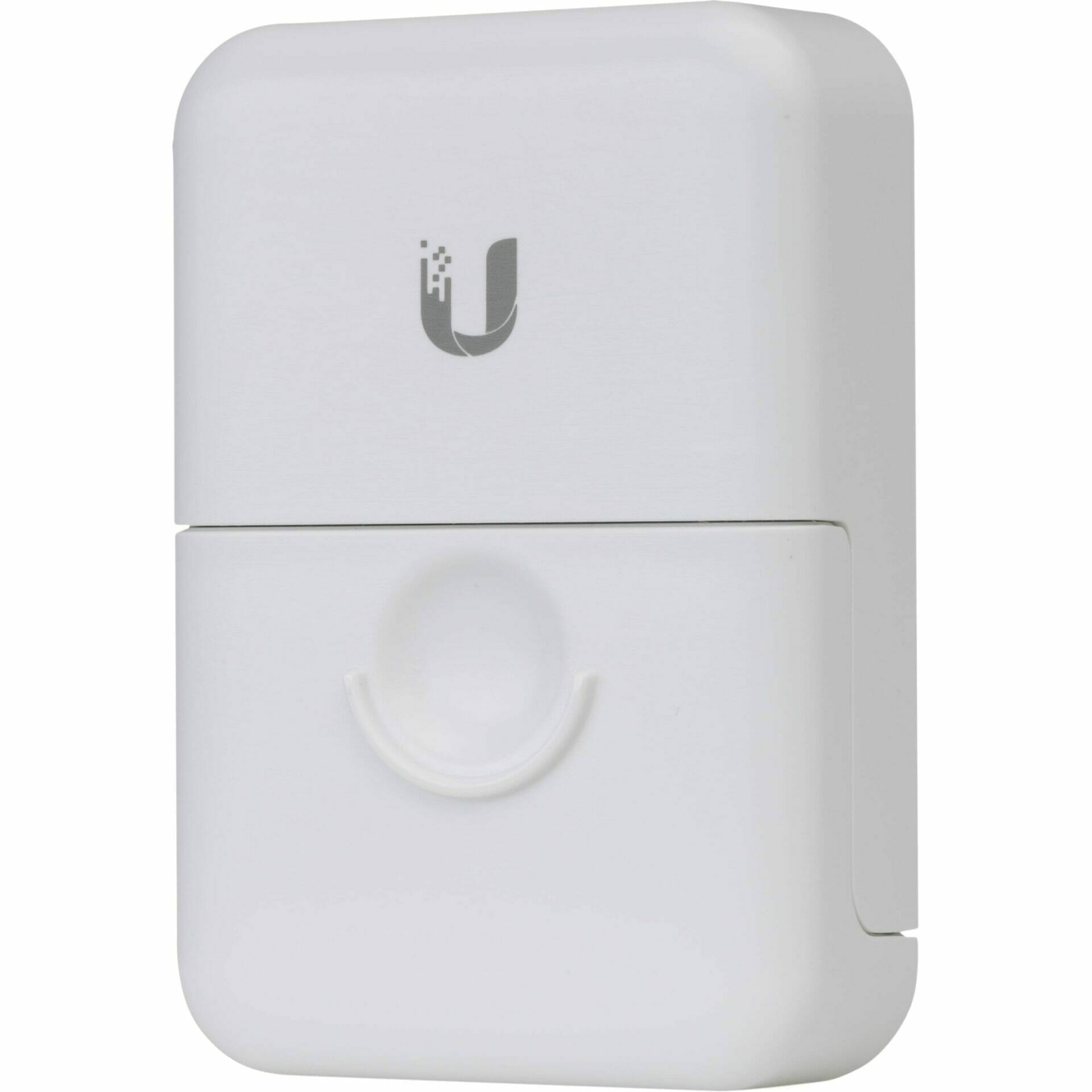

| Model | ETH-SP-G2 |
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3 in) |
| Weight | 80 g (2.8 oz) |
| Weatherproofing | IPX5 |
| RJ45 Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/µs |
| Max. Impulse Spark-Over | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Data Line Protection | Up to 2.5 Gbps |
| Ambient Operating Temp. | -30°C to 65°C (-22°F to 149°F) |
| Ambient Humidity | 10% to 90% non-condensing |
Key Applications
- Ideal for safeguarding outdoor Ethernet devices.
- Ensures network protection in harsh weather conditions.
Key Features
- Enhanced Surge Protection – Shields your Ethernet devices from electrical surges and ESD.
- High Compatibility – Works with PoE and non-PoE devices up to 1 Gbps.
- Weatherproof Design – Durable IPX5-rated housing for outdoor use.
- Quick Installation – Easy setup with plug-and-play functionality.
- Lightweight & Compact – Perfect for tight installation spaces.
FAQs
What devices are compatible with the ETH-SP-G2?
The ETH-SP-G2 works with all Ubiquiti airMAX® devices and any Ethernet-compatible equipment.
Can it handle high-speed connections?
Yes, the surge protector supports speeds up to 1 Gbps and is compatible with 10/100/1000 Mbps networks.
Is the ETH-SP-G2 weatherproof?
Absolutely! It is IPX5-rated, ensuring durability in outdoor environments.
Does it require professional installation?
No, it features a plug-and-play design for quick and easy installation.
How often should I replace it?
Replace the surge protector if it shows visible wear or after a major surge event.
