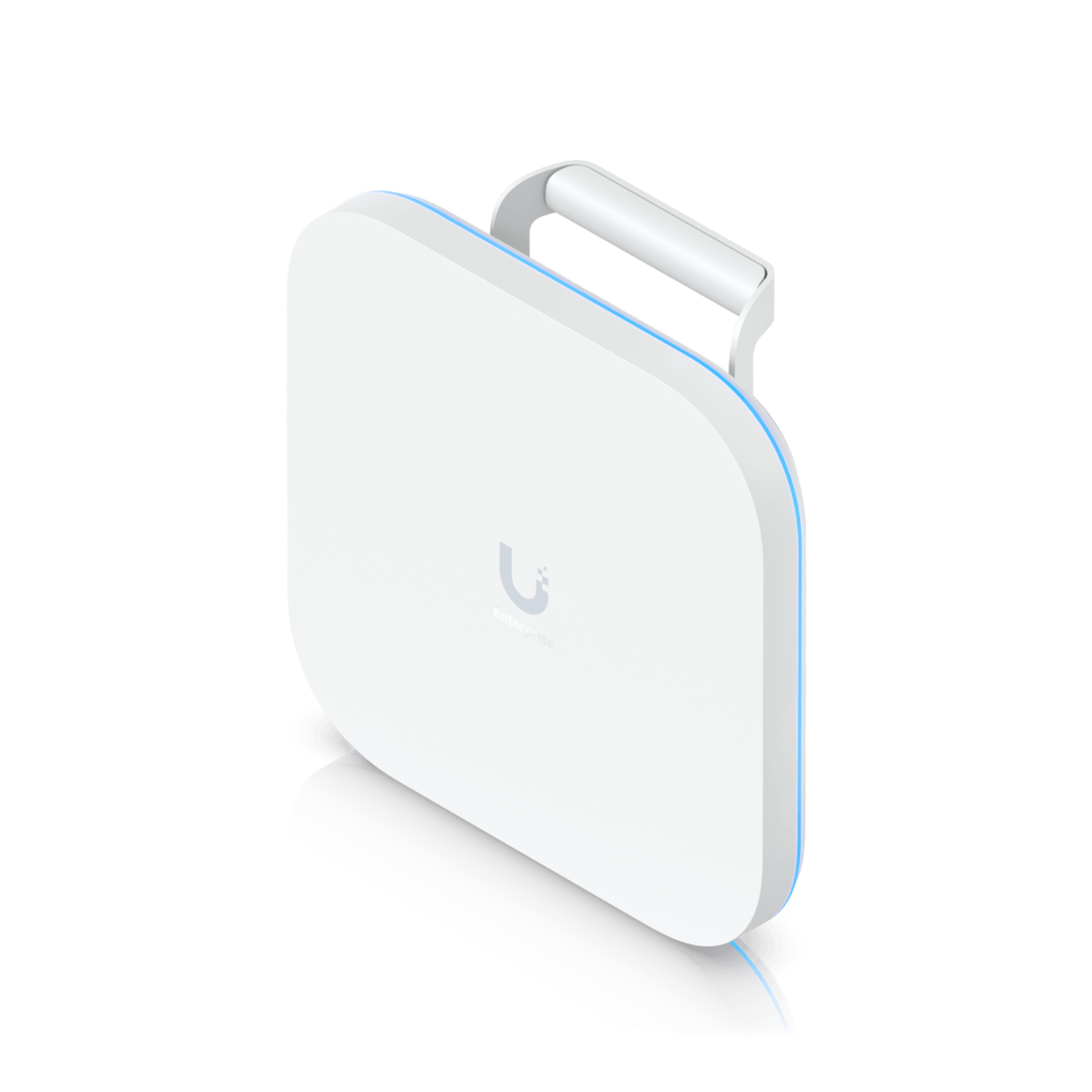

Ubiquiti UniFi E7 Campus Access Point US

$799.00

  • Enterprise-grade indoor/outdoor access point with ‎ 10-stream‎ ‎‎ WiFi 7 performance, PRISMâ„¢ active RF filtering technology, and integrated directional antennas.
  • WiFi 7 with 6 GHz support
  • 10 spatial streams
  • Real-time spectral analysis for enhanced channel selection
  • High selectivity PRISMâ„¢ RF filtering technology
  • Dedicated spectral analyzer radio
  • Directional high gain antenna array
  • Long-range 6 GHz performance with AFC*
  • 465 m² (5,000 ft²) coverage
  • 1,000+ connected devices
  • (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

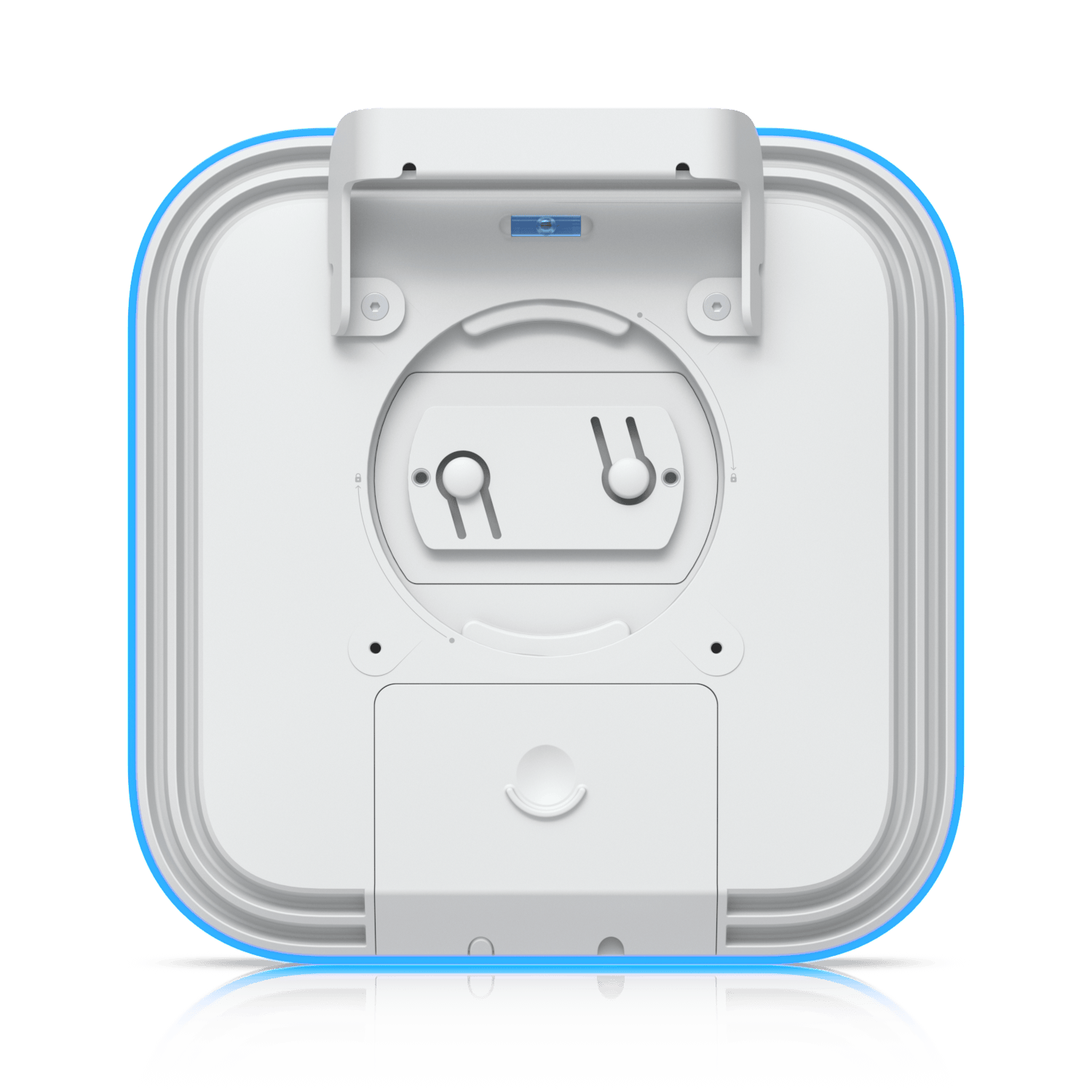

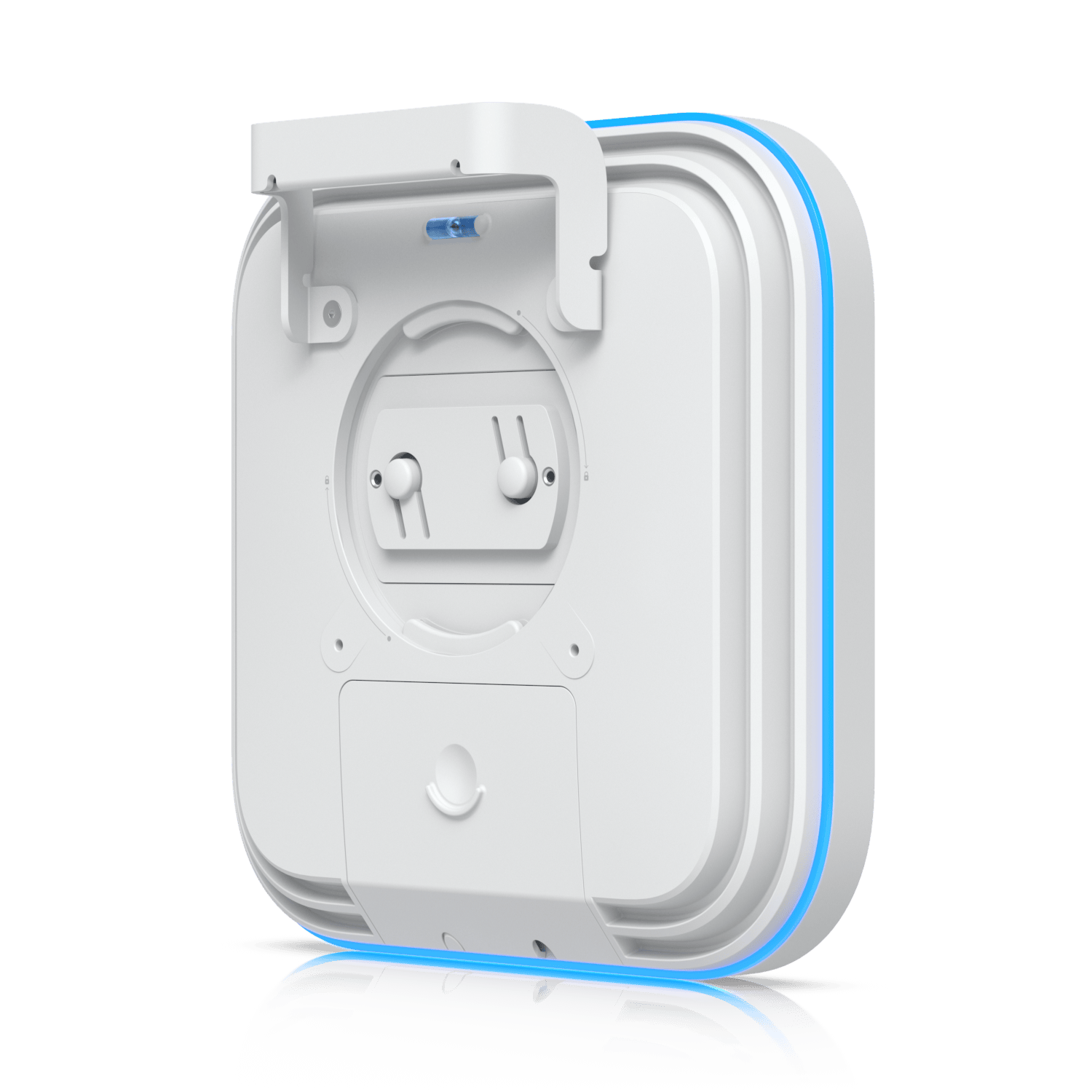

  • Versatile articulating wall/pole mount for precise position (included), VESA 100×100 compatibility
  • Powered using PoE++
  • *Available in FCC/IC region only.

🚫Out of stock

Want to be notified when this product is back in stock?

SKU: E7-Campus Category:

Description

Mechanical
Dimensions Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″)
Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″)
Weight Device: 2.2 kg (4.9 lb)
Articulating mount: 0.9 kg (2 lb)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mount material Stainless steel, aluminum alloy
Pole mount diameter 1–2.5″ (25–63.5 mm) on pipe outer diameter
Wind survivability 164.75 N at 200 km/h (37 lbf at 125 mph)
Weatherproofing IPX6
IP67 with Waterproof Door Kit (Included)
Hardware
Networking interface (1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port
Management interface Ethernet
Power method PoE++
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 44W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
30 dBm
30 dBm (36 dBm EIRP)*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
8.6 Gbps (BW240)
11.5 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
9 dBi
12 dBi
12 dBi
Antenna beamwidth
2.4 GHz
5 GHz
6 GHz
90° x 80°
100° x 55°
90° x 50°
Antenna Internal with directional patterns
LEDs R/G/B
Button Factory reset
Mounting Articulating mount for wall, pole or ceiling mounting (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 1,000+
Ubiquiti specific features High selectivity PRISMâ„¢ RF filtering technology
Dedicated spectral analyzer radio
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 11.5 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
