Description
hEX S (2025)
A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU — ideal for homes, offices, or underfunded labs that need reliable performance.
Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

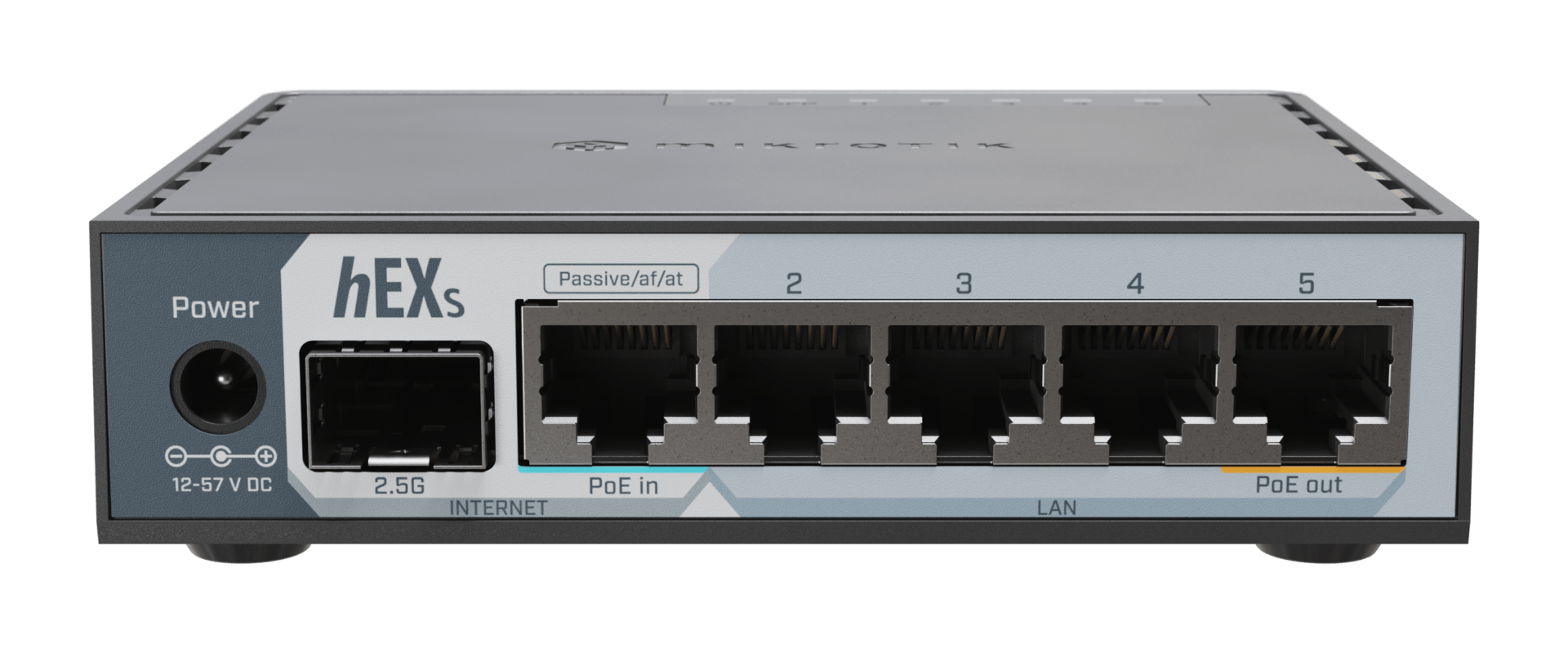

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more — so you can build the wired network you’ve always wanted.
Specifications
| Details |
| Product code |
E60iUGS |
| Architecture |
ARM |
| CPU |
EN7562CT |
| CPU core count |
2 |
| CPU nominal frequency |
950 MHz |
| Switch chip model |
EN7562CT |
| RouterOS license |
4 |
| Size of RAM |
512 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$69.00 |
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
23 W |
| Max power consumption without attachments |
5 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether5 |
| PoE out |
Passive PoE up to 57V |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
| Number of 1G Ethernet ports with PoE-out |
1 |
Fiber
| Details |
| SFP ports |
1 (2.5G supported) |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB 3.0 type A |
| Max USB current (A) |
1 |
Other
| Details |
| CPU temperature monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Mode button |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
