Description
Product Specifications:
- Channel Spacing: Configurable on 2.5 MHz increments
- Frequency Range: 2400 – 2483.5 MHz
- Channel Width: 5 MHz, 10 MHz or 20 MHz
- Physical Layer: 2×2 MIMO OFDM
- Ethernet Interface: 10/100BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
- Latency: 3 – 5 ms
- Antenna Beamwidth: 55° azimuth, 55° elevation (both H&V)
- Transmit Power: -30 to +22 dBm (combined, to EIRP limit by region) (1 dB interval)
- Antenna Gain: 8 dBi Dual Slant, integrated patch
- Max. Transmit Power: 22 dBm combined
- Reflector Gain: +14 dBi
- Antenna Connection: Integrated patch antenna
- Environmental: IP55
- Temperature: -40°F to 131°F (-40°C to 55°C)
- Weight: 1 lb (0.45kg)
- Wind Survival: 118 mph (190 km/hour)
- Dimensions: 11.75″ x 3.4″ x 3.4″ (30 x 9 x 9cm)
- Max. Power Consumption: 12W
- Input Voltage: 24 to 30V
Product Includes:

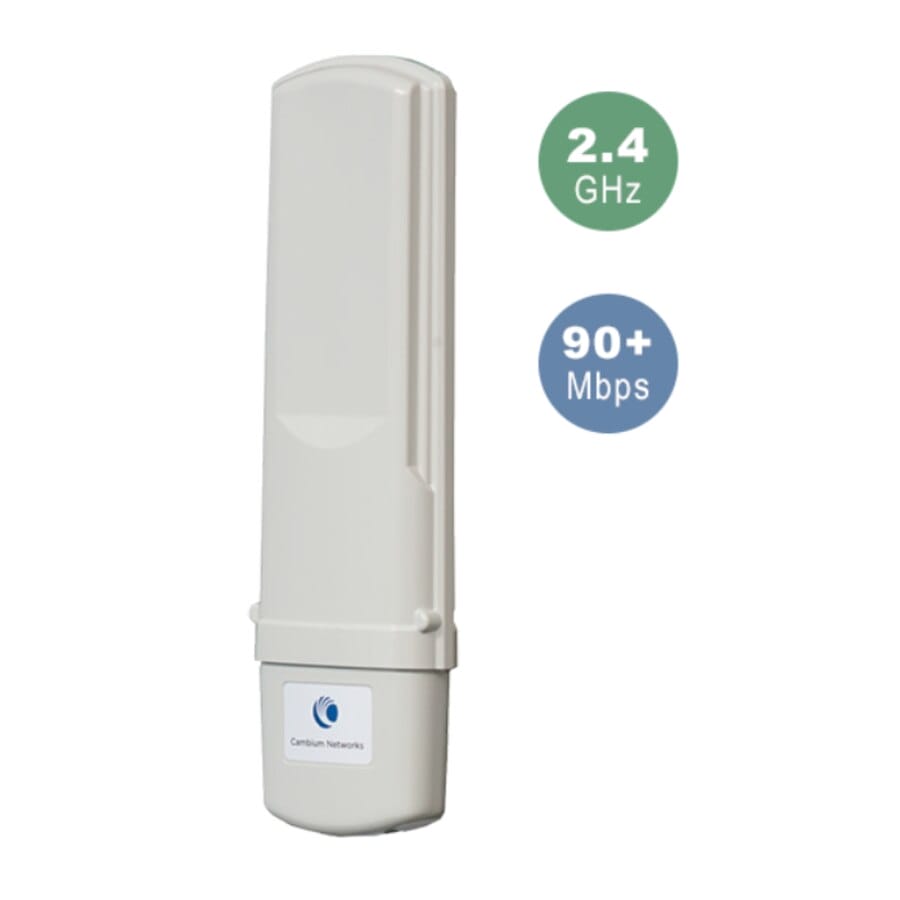

(1) PMP450 2.4GHz Subscriber Module
* Power Supply Sold Separately *
