Description
| Mechanical | |
|---|---|
| Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2″) |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Enclosure material | Aluminum, UV stabilized polycarbonate |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3″) |
| Wind loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 22W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| ESD/EMP protection | Air/contact: ± 24kV |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP only |
| Ubiquiti specific features | Wave technology, discovery utility |
| Network | Bridge mode |
| Services | UISP, ping watchdog, NTP client |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Max. throughput | 1.95 Gbps |
| Max. range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
How to Use Ubiquiti airFiber 60 Long-Range?
1. Installation Process

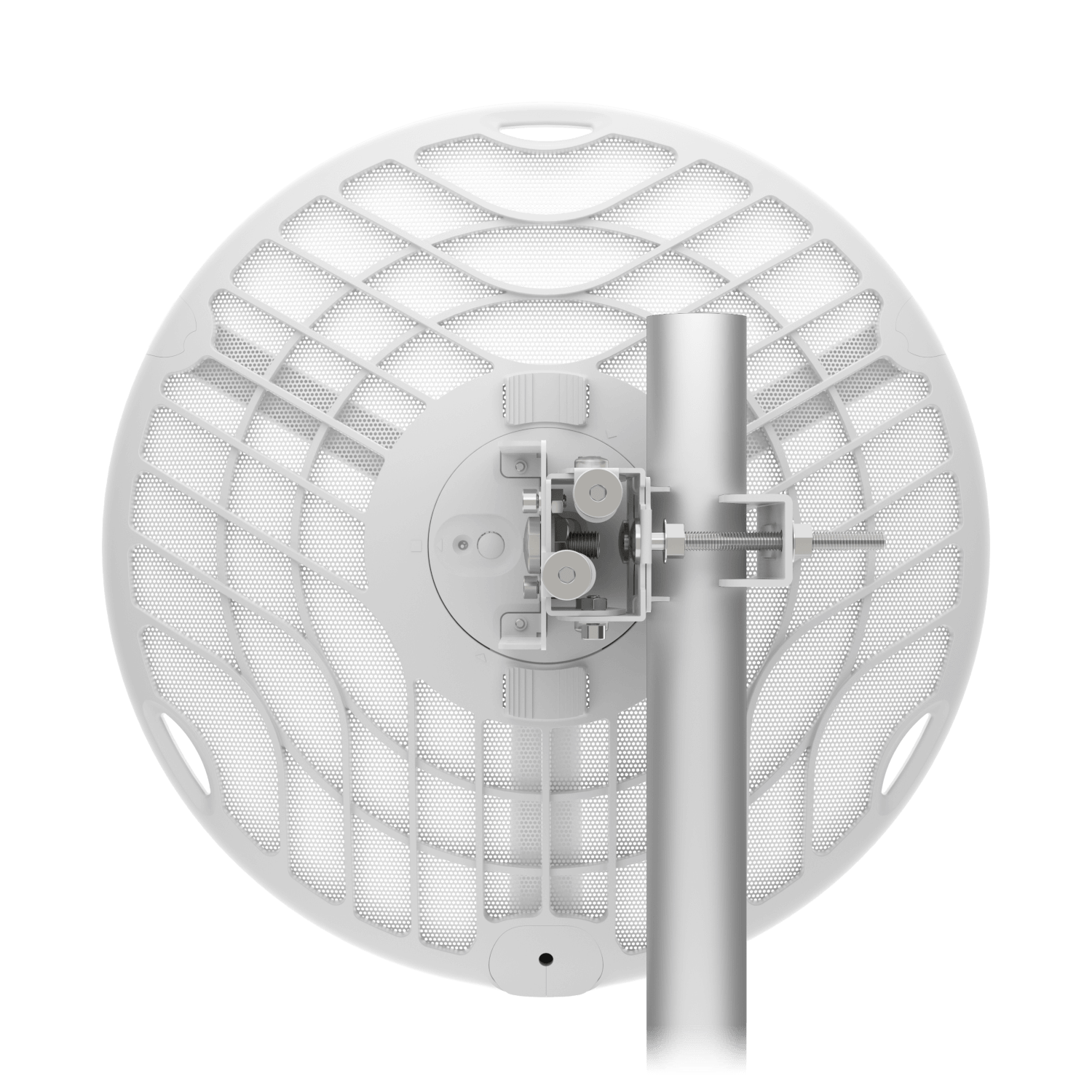

- Mount the Device: Use the provided precision alignment mount to secure the unit on a pole.
- Align the Unit: Utilize the Bluetooth setup and integrated GPS for precise alignment.
- Connect to Network: Plug the device into your network via the Gigabit RJ45 port.
- Configure Settings: Use the Ubiquiti UISP app for easy configuration and monitoring.
2. Operation Modes
- Point-to-Point (PtP): Connect two locations (e.g., campuses or buildings) with a dedicated link.
- Point-to-Multipoint (PtMP): Serve multiple clients or access points using a Wave AP.
FAQs
1. What is the maximum range of the Ubiquiti airFiber 60 Long-Range?
The device supports a link range of 12+ kilometers.
2. Can the airFiber 60 Long-Range work in extreme weather?
Yes, it is designed to withstand temperatures from -40°C to 60°C (-40°F to 140°F) and strong winds up to 125 mph.
3. What deployment modes are supported?
The device supports Point-to-Point (PtP) and Point-to-Multipoint (PtMP) modes.
4. Does the device support encryption?
Yes, it uses WPA2-PSK (AES) encryption for secure data transmission.
5. How is the device powered?
It operates on Passive PoE with a power consumption of 22W.
6. Is it compatible with other Ubiquiti products?
Yes, the airFiber 60 Long-Range integrates seamlessly with other Ubiquiti devices like Wave APs.
7. Do I need special tools for installation?
No, the device comes with a precision alignment mount and integrates with the UISP app for easy installation.
8. Can it handle high data traffic?
Yes, with a maximum throughput of 2 Gbps, it is suitable for high-traffic environments like enterprise or ISP backhauls.
