11 GHz, 300+ km link range
1.2+ Gbps throughput
Distinct RX and TX frequencies
1+ Mpps processingDescription
| Mechanical | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.9 x 4.4 x 3.4″) |
| Weight | 2.3 kg (5 lb) |
| Mounting | AF-11G35 mount compatible |
| Hardware | |

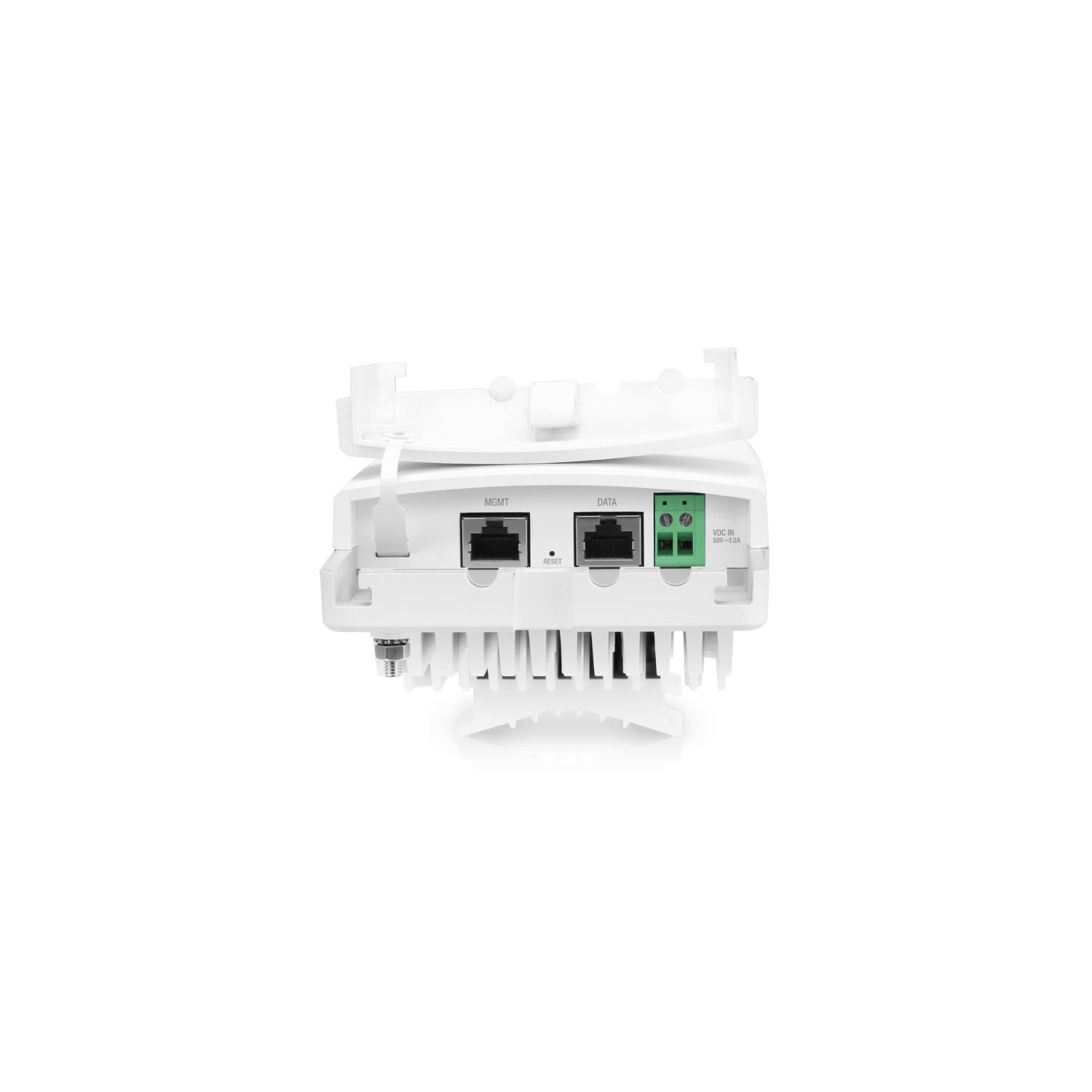

| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Terminal block direct-wire |
| Power supply | 50V DC, 1.2A gigabit PoE adapter (Included) |
| Supported voltage range | 38-56V DC |
| Max. power consumption | 36W |
| RF connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | SISO/MIMO |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range | 300+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency* | 10.7-11.7 GHz *Depends on regional regulations. |
| Max. conducted TX power* | 30 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 1 ppm |
| Channel bandwidth* | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles |
