Description
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5″) |
| Weight | 280 g (9.9 oz) |
| Hardware | |
| Networking interface | (4) GbE RJ45 ports |
| Management interface | Ethernet WiFi |
| Power method | Micro-USB adapter (Included) 24V DC, 0.83A PoE 24V In on Ethernet port 1 |
| Power supply | 24V |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 8.5W |
| PoE Out | Controllable 24V PoE Out (4, 5+, 7, 😎 on WAN Port |
| Operating frequency | 2.4 GHz/5 GHz |
| Antenna gain 2.4 GHz 5 GHz |
4 dBi 5 dBi |
| Max. speeds 2.4 GHz 5 GHz |
300 Mbps 866.7 Mbps |
| Max. TX power | 22 dBm |
| ESD/EMP protection | ± 24 kV Contact / Air |
| LED | Status |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |

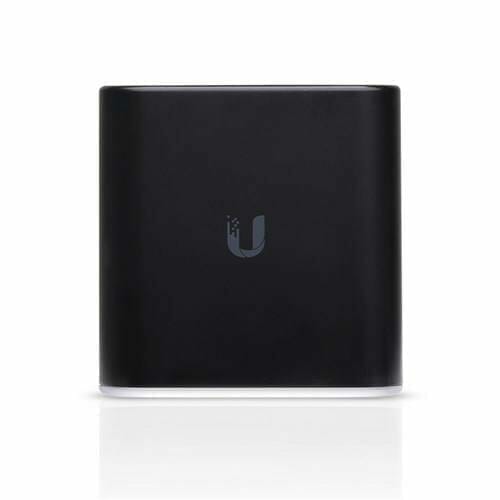

KeyFeatures of airCube Home WiFi AP
- Fast Internet Speeds – Supports up to 300 Mbps for uninterrupted browsing and streaming.
- Wide Coverage – Eliminate dead zones with powerful 2×2 MIMO technology.
- Compact Design – A sleek and stylish build that fits anywhere in your home.
- Easy Installation – Hassle-free setup with the UNMS App for iOS and Android.
- Energy Efficiency – Low power consumption, ensuring eco-friendly performance.
