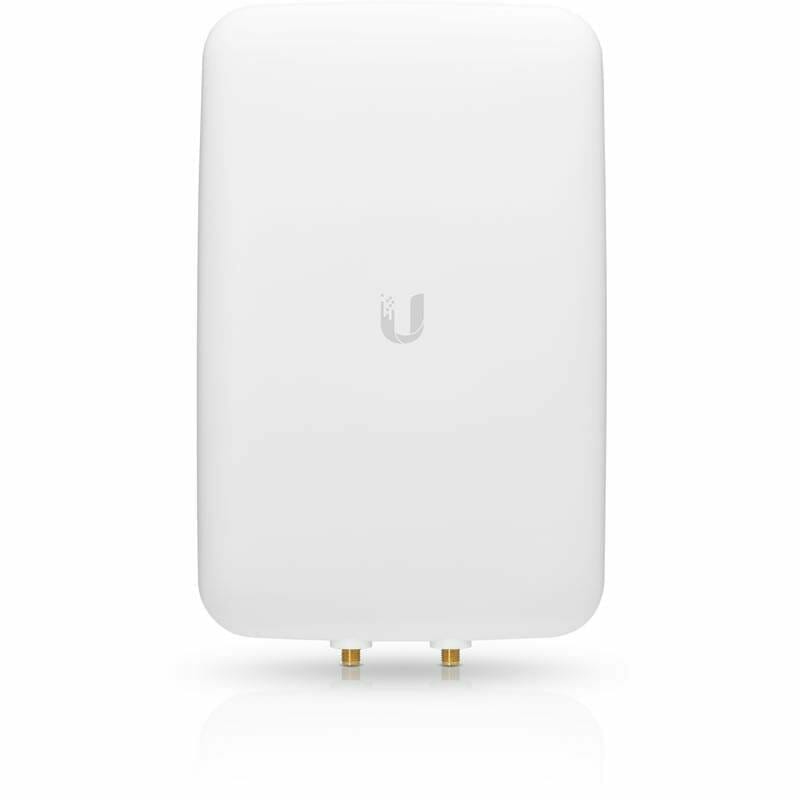

UniFi Mesh Antenna UMA-D

$99.00

Key Features
  • Optimized for 802.11ac Wi-Fi Standard
  • Dual-Band / Dual-Polarity
  • Three-Axis Ball Joint Mount
  • Encased in UV-Stabilized Plastic
  • For Indoor or Outdoor Use

Out of stock

SKU: UMA-D Categories: , ,

Description

The Ubiquiti UniFi Antenna,UMA-D, is an optional mesh antenna designed to work with the Ubiquiti UniF® AC Mesh AP, the UAP-AC-M. With dual-band support, the Ubiquiti UMA-D expands range coverage and provides customized pattern shaping. It is available in a single and 5-pack.

Product Features

• Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
• Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
• Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
• Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Product Specifications

• Enclosure: Outdoor UV Stabilized Plastic
• RF Connections: (2) RP-SMA
• Supported Frequency Range: 2.4 – 2.5GHz, 5.1 – 5.9GHz
• HPOL Beamwidth: 2.4GHz – 90° / 5Ghz – 45°
• VPOL Beamwidth: 2.4GHz – 90° / 5Ghz – 45°
• Elevation Beamwidth: 2.4GHz – 90° / 5Ghz – 45°
• Maximum VSWR: 2:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 2.4GHz – 25dB / 5Ghz – 30dB
• Antenna Gain: 2.4GHz – 10dBi / 5Ghz – 15dBi
• Mounting: Wall/Pole (kits included)
• Dimensions: 7.93 x 5.04 x 1.28″

Product Includes

• Wall-Mount Kit
• Lock Ring
• Ball Joint Mount
• Mount Assembly
