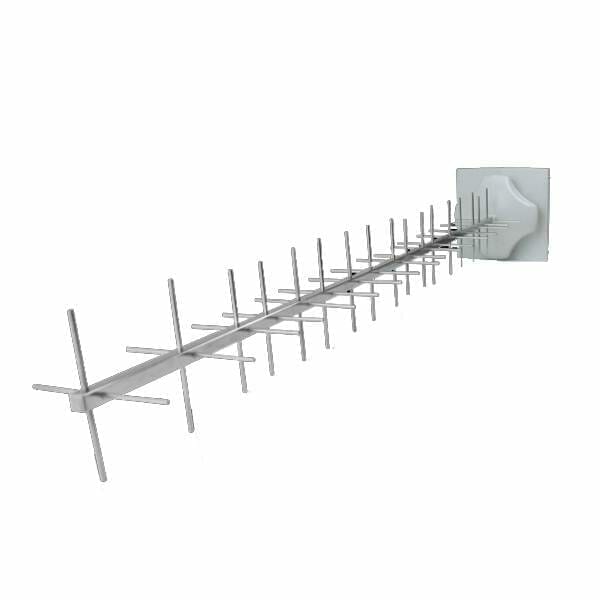

airMAX Yagi 900 MHz 2×2 16 dBi Antenna, 2-Pack

$209.00

airMAX® 2×2 High-Gain Yagi Antenna Pair the airMAX® Yagi Antenna with a Rocket™M900 BaseStation for directive coverage in Point-to-Point (PtP) bridging or Point-to-Multipoint (PtMP) networks.











SKU: AMY-9M16x2 Categories: , ,

Description

AMY-9M16
Frequency Range 902 – 928 MHz
Gain 16 dBi, Both Polarizations
HPOL Beamwidth 29 to 34°
VPOL Beamwidth 29 to 34°
F/B Ratio 20 dB
Max. VSWR < 1.5:1 Over Band
Dimensions (mm) 1365 x 215 x 218
Weight 2.5 kg
Wind Survivability 120 mph
Wind Loading 35 ft-lbs @ 100 mph
Polarization Dual Linear
Cross-pol Isolation 20 dB
ETSI Specification EN 302 326 DN2
Mounting M8 U-Bolt Pole Mounting Kit Included

Additional information

Weight 7 lbs
